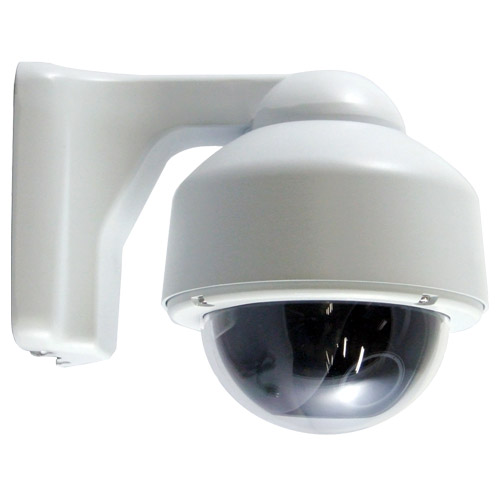

DWD540 - High Res Outdoor Day/Night Varifocal Dome Camera

Click to watch Video Overview of DWD540 Camera.

This is the ultimate camera for indoor or outdoor professional applications. Excellent picture quality is provided by the high resolution Sony Day / Night imaging chip. The 3-Axis wall mount bracket, 3 to 8mm varifocal lens, and easy dip switches for camera functions make it a dream to install and configure. DNR removes digital noise from the image, making it less grainy.

When the camera is fixed on the wall you can adjust the camera's 3-dimensional bracket to the angle you need. The camera can be adjusted horizontally 355° and vertically 45°. Then the camera's varifocal lens can be adjusted to the angle of view and focus desired.

Features:

• High Resolution 540 TV Line
• Day / Night
• Varifocal 3.5 - 8mm lens
• Indoor or Outdoor Use
• Vandal-resistant Dome
• Attractive 3-Axis Wall Bracket included
• Digital Noise Reduction (DNR)
• Easy DIP switch design for camera options
• Low Power Consumption

Specifications:

• 1/3" SONY Day / Night CCD
• 540 TV lines
• 3.5 - 8mm Varifocal lens
• 0.01 Lux
• Back Light Compensation (BLC) On/Off Dip Switch
• Auto Electronic Shutter (AES) On/Off Dip Switch
• Auto Gain Control (AGC) On/Off Dip Switch
• Horizontal Reverse Image (H-Mirror) On/Off Dip Switch
• Auto White Balance
• S/N ratio: +48dB (AGC off)
• Operating Temp: -10°C to 50°C (14°F to 122°F)
• Dimensions - Dome Diameter: 132mm (5.2 inches)
• Dimensions - Camera Height: 150mm (5.9 inches)
• Dimensions - Bracket Height: 115mm (4.5 inches)
• Weight: 1338g (about 3 lbs.)
• BNC Connection
• Power 12V DC (not included)
• Power Consumption: < 100ma
