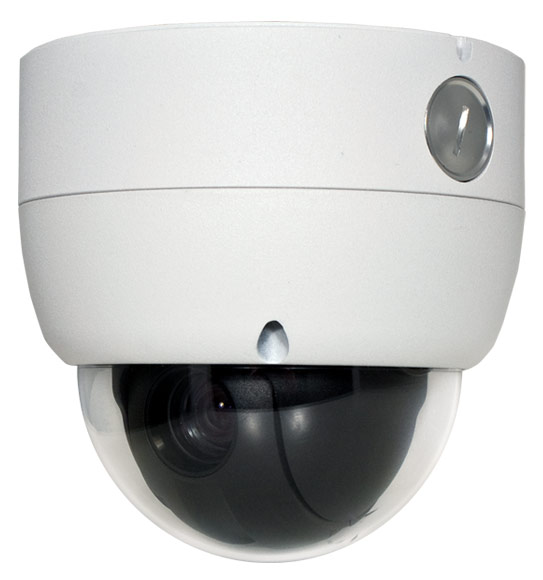

D10XSPD - 10X Day/Night Speed Dome PTZ Camera

Wall bracket is currently out of stock.

These day / night speed dome PTZ cameras have an awesome set of features and specifications. They allow you to pan, tilt, or zoom up to 100X (total zoom = optical zoom X digital zoom).

To use a PTZ camera on our PC-Based DVRs, you must have an RS485 Converter.

Due to amperage required, you should not install with plug and play cable, use RG59 instead.

Product Includes:

• Ceiling bracket included
• Installation / Instruction Manual
• Free Technical Support

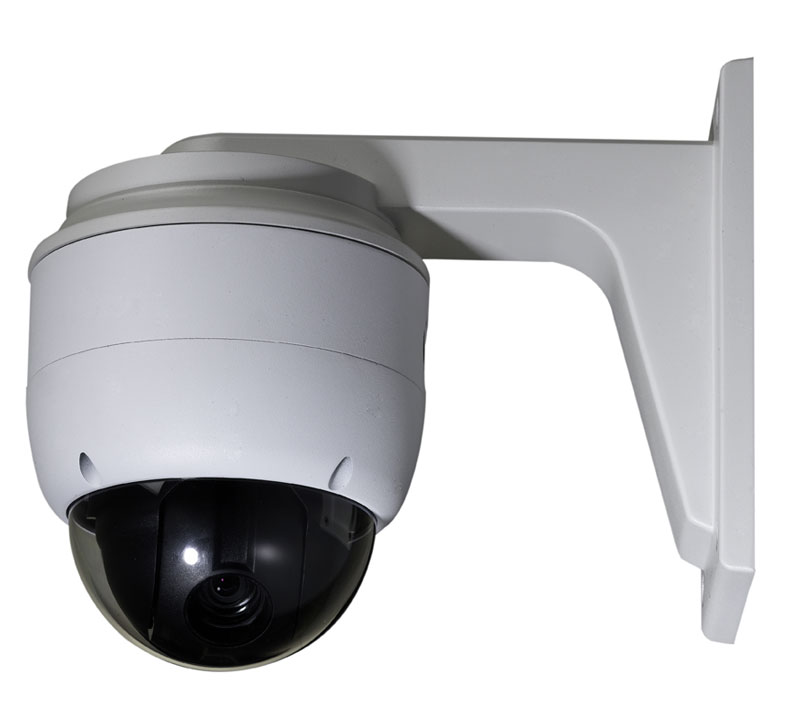

• Wall bracket is optional
• Power Supply

Features:

• 10X Samsung Digital Zoom
• 10X Optical Zoom
• 127 Presets
• 8 Programmable Group Tours
• On Screen Display (OSD)
• Vandal-Proof Armor Dome
• Indoor / Outdoor
• Day / Night
• Small Footprint

Specifications:

• Image sensor: 1/4" Samsung CCD
• Horizontal Resolution: 500 TV Lines (Color), 570 TV Lines (B/W)
• Min. Illumination: 0.7 Lux (Day/Color), 0.02 Lux (Night/B&W)
• Pan Speed: 0-360° /s
• Tilt Speed: 0-180° /s (Autoflip), 0-95° /s (Normal)
• Pixels: 768 x 494
• Optical Zoom: 10X
• Digital Zoom: 10X
• SN Ratio: > 50db
• Gain Control: Auto/Manual
• Back Light Compensation: Low / Middle / High / Off
• Focus: Auto / Semi-Auto / Manual
• Iris: Auto/Manual
• Lens: 3.8 ~ 38mm, F1.8
• Pan: 360 degrees continuous pan rotation
• Preset Positions: 127
• Comm Port: RS485 Pelco-D, Pelco-P selectable
• Alarm Input: 4
• Dimensions (mm): Dome = 100.5mm (Diam) Housing = 141mm (Diam) 140mm (Height)
• Dimensions (inches): Dome = 3.96in (Diam) Housing = 5.56in (Diam) 5.51in (Height)
• Operating Temperature: 0C ~ 40C (22F ~ 104F)
• Weight: 1.5kg (about 3.5lbs)
• Power Consumption: 9W Max
• Power: 12VDC 750ma (included)
