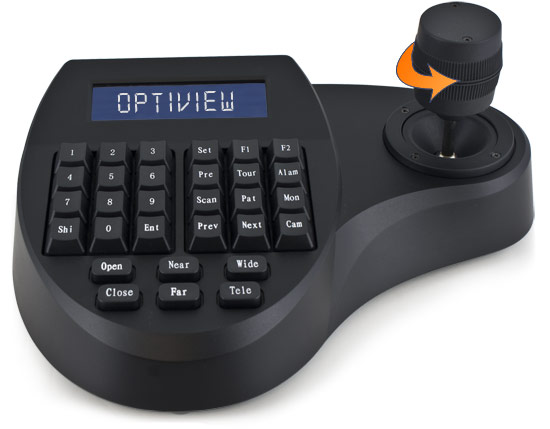

3D PTZ Joystick Controller

This professional PTZ Controller is functional and ergonomic. It will work with all the PTZ cameras offered at Discount Security Cameras and most others (see detailed specs below).

Features:

• Three axis joystick - control pan, tilt and zoom
• Alpha-Numeric LCD Display
• Easy to operate and ergonomic
• Supports all common protocols and baud rates
• Controls up to 32 PTZ cameras
• Power Supply included

Specifications:

• Communication: RS-485, Max 1200 Meters
• Display: Alpha-numeric Backlit LCD Display
• Selectable Baud Rates: 2400, 4800, 9600 and 19200
• Integrated Protocols: Pelco D, Pelco P, Samsung, Neon, Panasonic, Kalatel, Ultrak, Lilin and Hunda600
• Power: 12V DC power supply included
• Power Consumption: 5W
• Dimensions: 218mm (W) x 180mm (D) x 56mm (H)
• Weight: Approx. 1.3Kg (3 lbs)
• Humidity: 90% Max
• Operating Temp.: 0C ~ 50C ( 32F ~ 122F)
