4 Camera MPEG4 120fps Triplex Embedded DVR Color Infrared System with USB backup

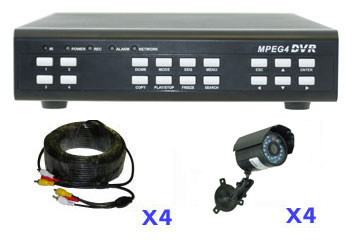

This complete security system works great for home or office. System comes with 4 infrared color cameras (model IRB420), 4 - 65ft. plug and play cables (CAB65), and our 4 Camera MPEG4 120fps Triplex Embedded DVR with USB backup (MINIDVR).

If you prefer not to use infrared cameras you can switch to the Day/Night Color Bullet Camera (DN101) at no charge (see Product Options above).

If you prefer to use RG59 Siamese cable instead of the plug and play cable just give us a call. We will make sure that you have all the connectors and tools you need for your system. For more information about cabling click here.

DVR Features:

• Four Channel Input
• Triplex (Recording, Playback, Network all at same time)
• Advanced MPEG4 Compression
• Remote Viewing
• Real Time display
• Up to 120fps Recording Speed
• Archiving via USB
• Stable Operating System (Embedded Linux)
• Motion Detection Smart Cell
• UTP Solution
• Scheduled Recording
• Password Protection
• Network connection
• IE Web Server and Remote Client
• Firmware upgradable
• PTZ control via RS-485 (Pelco D, Pelco P)
• Camera Installation Plug & Play
• Automatic Camera Detection
• Support Covert Camera Operation
• Support Pre-Alarm Recording
• USB 2.0 Port for Video Clip Exporting
• IR Remote Control Included

DVR Specifications:

• Camera Inputs: 4
• Image Compression: MPEG4 Advanced
• Embedded Linux Operating System
• Triplex (Playback / Record / Network View)
• Digital Zoom 2 X 2
• Video Input: BNC x 4, 1.0Vp-p, 75 ohm
• Video Output: BNC to composite monitor
• Video Output: VGA 800 x 600, 1024 x 768, 1280 x 1024 pixels
• Audio Input: 2 input
• Audio Output: 2 output
• Hard Drives: 1 - 500 Gig drive included, 2 HD Maximum (up to 2 Terabyte)
• Display: 30 fps per channel (@720 x 480)
• Recording Rate: 120 fps (@360 x 240), 60 fps (@720 x 240)
• Recording Qualities: Best Quality, Standard, ezRecord, Extended Record, DSL
• Recording: Schedule, Alarm, Motion Detection
• Search: Time, Date, Event
• Playback Speeds: 1X, 2X, …32X
• Alarm Inputs: 4 dry contacts, NC/NO programmable
• Alarm Outputs: 1 relay output (Form C) (Rating : 5A/30 VDC)
• 30 Images Pre-alarm operation
• PTZ Control: RS-485 interface
• Archiving: USB 2.0, network
• Network: Ethernet RJ-45 connector, 10/100Mbps, supports DHCP
• Remote Operation: Monitor, Playback, System Setup, Dome Camera Control
• Password Control: 2 level, Administrator/User
• General Unit Dimensions: (WxHxD) 13in(W) * 9in(D) * 2in(H)
• Unit Weight: 8 lbs
• Operation Temperature: 0C - 40C (32F - 104F)
• Relative Humidity: 30% - 90% Non-condensing

Storage Capacity:

At the maximum frame rate (30 fps per camera) this DVR will use approximately 4 to 6 gigabytes of hard drive space per camera, per day. Therefore, on a 500 gig hard drive with all 4 cameras hooked up you can store about 20 to 28 days of recorded video. The use of record time scheduling and motion detection can extend the recording capacity up to twice this amount. You may also tune down the record frame rate to increase your recording capacity (however this may affect video picture quality). Once the hard drive is full the unit will start recording over the oldest video.

You may upgrade the HDD storage on this machine up to 2000 gigabytes (2 terabyte).

Please keep in mind that actual storage capacity varies greatly based on many factors including the resolution and imaging chip size of each camera, the amount of motion in the field of view, and of course the selected DVR features and settings such as the frame rate, scheduling, and motion detection. Recording audio will also use up storage space (approx 1-2 gigs per audio input per day).

Be careful when comparing our storage capacity to other DVRs. Often times other manufacturers will claim that their DVR will allow you to store months of video. Be aware that they may be assuming that the frame rate is turned all the way down to one frame per second which is not a practical setting to use.

Important Note about Package Pricing:

The price for this dvr camera package reflects a discount off the total than if each item was purchased separately. Therefore, if an individual item is returned from the package, the refunded amount will also reflect the package discount. For example, if the package price is 20% less than if you bought each part individually, then for each item returned you would be refunded the full individual price minus the 20% overall discount. For a full description of return and warranty policies, click here.

---
