DVR6400 - 64 Camera Pentaplex H.264 DVR with DVD-RW Backup

This top of the line high resolution VR series DVR offers the best playback image quality at a very competitive price. We have adopted the latest H.264 technology to allow full screen playback video with clear, smooth, real time viewing. You cannot find a better image or more features than the VR series product line. We also include a remote client that not only allows control of the DVR server but also acts as a full feature DVR allowing streaming remote recording of all cameras from your VR Series DVR, IP cameras and servers.

Special Offer!
For a limited time we are offering a 19in Widescreen VGA color monitor for only $79 with the purchase of this DVR. See Product Options above for this and other monitor choices. Please note that if you choose to return the DVR you must also return the monitor in order to receive a full refund.
Refer to our return policy for full return information.

Compatible with Windows 7 x32 (not with x64)

Adding a KVM switch will allow you to set up the DVR next to an existing PC computer or PC-based DVR and use that machine's mouse, keyboard, and monitor. Then you switch between the computer and the DVR with a touch of a button.

When playing back recorded video on the DVR you may view up to 16 cameras at once (16-part partition). However, when playing back remotely using the client software or the web browser you may view up to 4 cameras at a time (4-part partition). You may view any of the available cameras but only 4 at a time.

Features:

• Real time audio for every channel
• Real time viewing and recording at full screen
• Up to 1920 fps for 64 channel (30 fps per channel)
• Smart search feature allows skipping over motionless areas
• Up to 16 channel simultaneous playback
• Optional matrix output allowing up to 4 monitors to display selected images (call for details)
• Less than .1 seconds delay in display
• Audio synced with video perfectly
• Recording options are scheduled, motion or 24hrs
• H.264 compression technology
• Watermarking
• Pentaplex recording, playback and remote connection all at the same time
• Supports many PTZ protocols
• Remote connection via IE or client
• Client allows control of settings on server also allows full recording and playback on remote machine
• Network speed auto adjusts for smoothest picture
• Keyboard and Mouse included

Specifications:

• Operating System: Windows XP Professional / Windows 7
• System CPU: Intel Dual Core+ or higher
• Memory: 1 Gig DDR SDRAM
• Camera Input: 64
• Playback: Full or multiscreen (R/T)
• Compression: H.264 Real-time
• Display resolution: 704 x 480
• DCIF 528x320 or CIF 352x240
• Recoding Speed: 1440 fps total (30 fps each camera)
• Audio: Full audio on every channel
• Hard Drive: 1 Terabyte Upgradable to 38 Terabytes (12 TB internal, 24 TB external)
• Backup: DVD-RW / USB

Storage Capacity:

At the maximum frame rate (30 fps) this DVR will use approximately 5 to 7 gigabytes of hard drive space per camera, per day. Therefore, on a 500 gig hard drive with all 64 cameras hooked up you can store 1 to 1.5 days of recorded video. A terabyte of storage would hold approximately 2 to 3 days of recorded video. The use of record time scheduling and motion detection can extend the recording capacity up to twice this amount. You may also tune down the record frame rate to increase your recording capacity (however this may affect video picture quality). Once the hard drive is full the unit will start recording over the oldest video.

You may upgrade the HDD storage on this machine up to 6000 gigabytes (6 terabytes).

Please keep in mind that actual storage capacity varies greatly based on many factors including the resolution and imaging chip size of each camera, the amount of motion in the field of view, and of course the selected DVR features and settings such as the frame rate, scheduling, and motion detection. Recording audio will also use up storage space (approx 1-2 gigs per audio input per day).

Be careful when comparing our storage capacity to other DVRs. Often times other manufacturers will claim that their DVR will allow you to store months of video. Be aware that they may be assuming that the frame rate is turned all the way down to one frame per second which is not a practical setting to use.

Note: The storage capacity using H.264 (aka MPEG4+) video compression is similar to MPEG4. However the big improvement of this newer technology is in its image quality, especially at higher resolutions such as full D1. In plain terms this means that you may use slightly more hard drive space for H.264 but when playing back recorded video you will notice a clearer picture especially when viewing full screen.

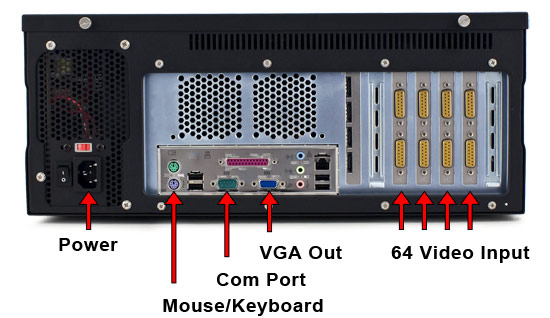

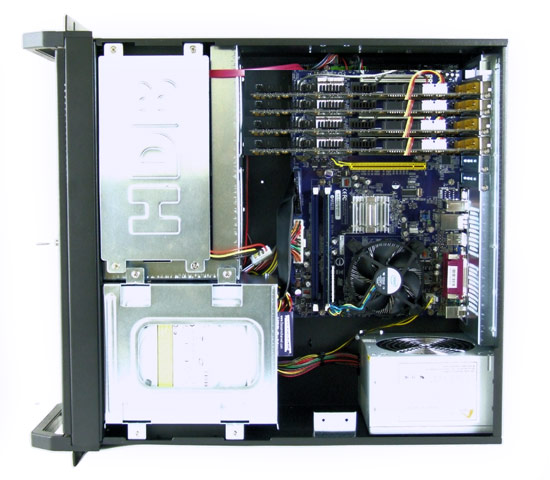

Additional Images:

>
