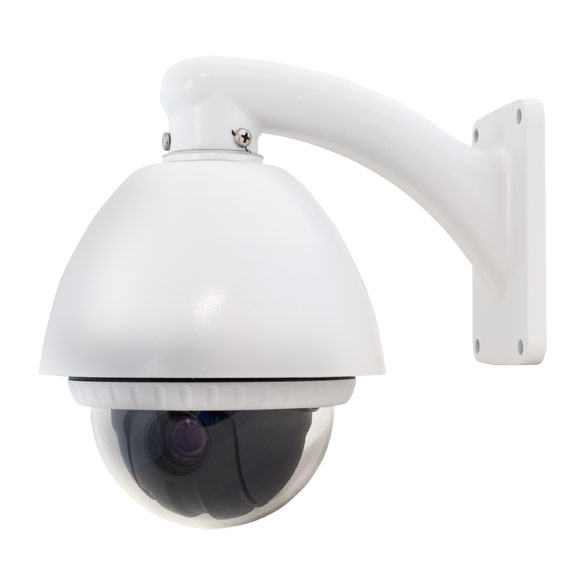

D10XSPDW - 10X Day/Night Mini Speed Dome PTZ Camera (wall mount)
|
In Stock
Model Number: D10XSPDW
Product Options
* denotes required field
Add PTZ Controller
Add RS485 Converter (for use with PC Based DVRs)*
Add Autotracking Box*
|
|
 10XSPD User Manual
 To use a PTZ camera on our PC-Based DVRs, you must have an RS485 Converter.
Due to amperage required, you should not install with plug and play cable, use RG59 instead.
Product Includes:
- Installation / Instruction Manual
- Free Technical Support
- Power Supply
- Wall Mount Bracket
Features:
- Day / Night
- Indoor / Outdoor
- 10X Optical / 10X Digital Zoom
- Auto Flip
- OSD (On Screen Display)
- 127 Presets (label, camera image setting)
- 8 Programmable Group Tours (20 action entities per group)
- Vandal-Proof Armor Dome
- Small Footprint
Specifications:
- Image sensor: 1/4" Interline Transfer CCD
- Effective Pixels: 768 (H) x 494 (V)
- Horizontal Resolution: 500 TV Lines (Color) / 570 TV Lines (B/W)
- Min. Illumination: 0.7 Lux (Day/Color), 0.02 Lux (Night/B&W)
- Lens: 3.8~38mm, F1.8
- Optical Zoom: 10X
- Digital Zoom: 10X
- S/N Ratio: 50dB (AGC Off)
- Day / Night: Auto / Day / Night (ICR)
- Focus: Auto / Semi-Auto / Manual
- Iris: Auto / Manual
- AGC: Normal / High / Off
- White Balance: Auto / Manual (red, blue gain adjustable)
- Back Light Compensation: Low / Middle / High / Off
- Flickerless: Selectable
- SSNR: Low / Middle / High / Off
- Pan Range: 360° (endless)
- Tilt Range: 180°(auto flip) / 95° (normal)
- Pan/Tilt Speed (preset): 360° per second
- Pan/Tilt Speed (manual): 0.05°~360° per second (proportional to zoom)
- Pan/Tilt Speed (swing): 0°~180° per second
- Preset Positions: 127
- Communication Interface: RS485
- Protocols: Pelco-D, Pelco-P (selectable)
- Operating Temperature: 14°F ~ 122°F / -10°C ~ 50°C
- Dimensions w/ Bracket (Diam*H): 5.5'' x 5.6'' / 144mm x 202mm
- Weight: Appx. 3.5lbs (1.5kg)
- Power Supply: DC 12V, 2A (included)
|
