DIRPTZ22 - 22X Zoom Infrared High Speed Dome Camera

See Reviews

Your Price: $1,499.00

In Stock

Model Number: DIRPTZ22

Product Options

Add PTZ Controller

Add RS485 Converter

Quantity:

View More Images

Helpful Tips To use a PTZ camera on our PC-Based DVRs, you must have an RS485 Converter.

Helpful Info Due to amperage required, you should not install with plug and play cable, use RG59 instead.

Product Includes:

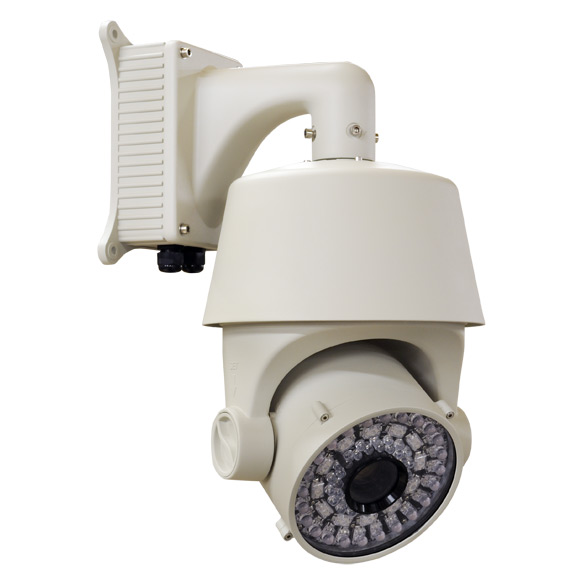

Wall bracket
Heater / blower
Installation / Instruction Manual
Free Technical Support
Power Supply

Features:

Day/Night plus ICR
High Resolution 480 / 530 TV Lines

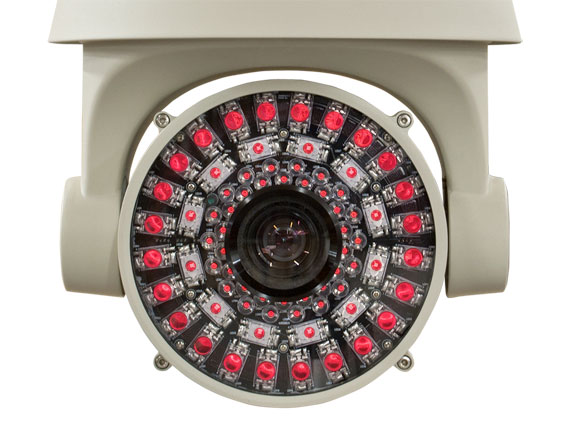

350 ft. Infrared Range (72 LEDs)
LED Service life > 30,000 hours
Weatherproof (IP66)

Specifications:

Image sensor: 1/4" Sony Super HAD CCD
Horizontal Resolution: 540 Lines
Optical Zoom: 22X
Digital Zoom: 12X
Lens: 3.4 ~ 77mm
Focus: Auto/Manual
Iris: Auto/Manual
Minimum Illumination: 0.1 Lux (ICR On)
S/N Ratio: ≥ 50db
Back light Compensation: Auto
Pan Angle: 360° continuous pan rotation
Tilt Angle: 90° (auto flip)
Manual Speed: 0.01° ~ 120° /s
Preset Speed: 120° /s
Presets: 220
Preset Accuracy: ±0.05''
Auto Scan: 8 auto scan tracks,
Auto Cruising: 8 cruising tracks (32 preset positions)
Pattern Tour: 8 groups (180 seconds of memory per group)
Guard Location: Guard location can activate preset, scan, cruising, and pattern tour
Data Communication: RS-485
Protocols: PELCO P, PELCO D
Baud Rate: 2400/4800/9600bsp
Operating Temperature (without blower): -30°C ~ 50°C (-22°F ~ 122°F)
Power Supply: 24V AC (power supply included, see note below for more details)

Helpful Info The camera and motors all run on 12vdc. However, since 12vdc cannot be run over a long distance without some power dissipation, we include a 24 volt power supply and use a transformer inside the camera to convert back to 12vdc.

Additional Images:

Social Sharing

Product Reviews

(5 Ratings, 2 Reviews)

Average Rating:

(From DSC)

DSC Web Administrator (Jacksonville, FL) 10/18/2011 11:48 AM

As the customer notes below, the IRPTZ22 is a great product. It’s also a unique product. Rarely do you come across a PTZ camera that is also infrared because of the camera’s considerable power requirements. The camera and motors all run on 12vdc. However, since 12vdc cannot be run over a long distance without some power dissipation, we include a 24 volt power supply and use a transformer inside the camera to convert back to 12vdc. The cameras now include a 180va transformer that will not overheat and allow the customer to run 18/2 up to 500' which has been thoroughly tested. The PTZ will work with Pelco D - but it’s a matter of getting the dip switch settings set up correctly. Tech support is available to help with this.

Product Review

Rich Mavrogeanes (wallingforod, CT) 10/11/2011 10:50 AM

This is a great camera. Great optics, great IR source. However, the company does not seem to really know how much power it draws. It actually runs on 24VAC via a power supply located in the housing. They list is a 12VDC they told me, because the internal workings use this. It's as if I asked what grade of gas to use in my car and they tell me about the engine valves. It was shipped without a transformer at all. A call to support was handled by someone who did not know the device and had only "did you plug it in?" sort of support. Eventually, they shipped a 40 VA "wall wart" 24VAC transformer, which promplty melted down. This camera system needs at least 100 VA, so you will have to get your own transformer. The device does not seem to work with the recommended PTZ joystick in Pelco D format, but it does work in Pelco P. Weird. Yeah, I'd buy another one. But I'd know what to expect next time. Now you will too.
