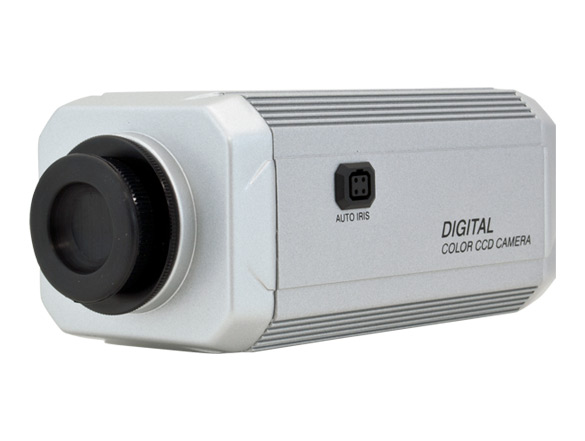

DKCC602 - High Resolution Wide Dynamic Range C/CS Mount Camera

Convert your screw down terminal to 2.1mm male to fit your power supply or plug and play cable with the PWRADT-0.

Notes:

• The lens and bracket are sold separately
• If you want to use this camera outdoors you need to put it in an outdoor housing. Keep in mind that the housings are not small, they are over a foot long. They look fine in an industrial or business application but may be inappropriate for some residential applications.
• For more info on calculating field of view, check out our lens calculator tool.

Features:

• Day / Night
• 600 Lines Resolution
• 0.01 Lux
• OSD (On Screen Display)
• 2D-DNR (2D Digital Noise Reduction)
• D-WDR (Digital Wide Dynamic Range)

Specifications:

• Image Sensor: 1/3" Sony Super HAD II CCD
• Resolution: 600 lines
• Total Pixels (H*V): 811 x 508
• Effective Pixels (H*V): 768 x 494
• Lens Mount: C/CS Selectable
• Min. Illumination: 0.01 Lux
• S/N Ratio: > 52db (AGC Off)
• Gain Control: OFF / LOW / MIDDLE / HIGH
• White Balance: ATW1 / ATW2 / MANUAL
• Electronic Shutter: 1/60s~1/100,000s (NTSC)
• Back Light Compensation: OFF / BLC / HLC Selectable
• 2D-DNR: ON / OFF Selectable
• D&N Selection: AUTO / COLOR / BW / EXT
• D-WDR: ON / OFF Selectable (level adjustable 0~35)
• Dead Pixel (DPC): OFF / Auto (Max 64 pts)
• IR Smart: ON / OFF Selectable (IR gain level adjustable 0~255)
• Motion Detection: OFF / ON (4 areas selectable)
• Privacy Masking: OFF / ON (8 areas selectable)
• Lens Shading (LSC): ON / OFF Selectable (level adjustable 0~255)
• Sharpness: ON / OFF Selectable (level adjustable 0~30)
• OSD: Built-in
• Operating Temperature: 14°F to 122°F / -10°C to 50°C
• Relative Humidity: 0~80%
• Dimensions (H*W*D): 2.2'' x 2.5'' x 4.9'' / 56mm x 64mm x 124mm
• Weight: Appx. 0.8 lbs (360g)
• Power Supply: AC 24V / DC 12V, 110mA (power supply not included)
