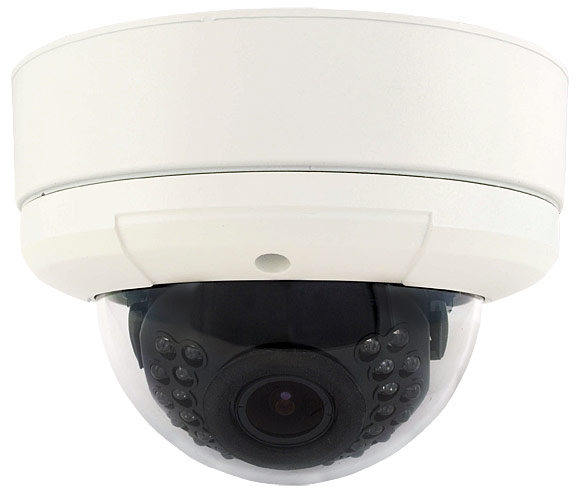

DKCIAD602V - High Resolution Infrared Varifocal Armor Dome Camera
|
In Stock
Model Number: DKCIAD602V
Product Options
* denotes required field
Add Cable and Connectors*
Add Power Supply *

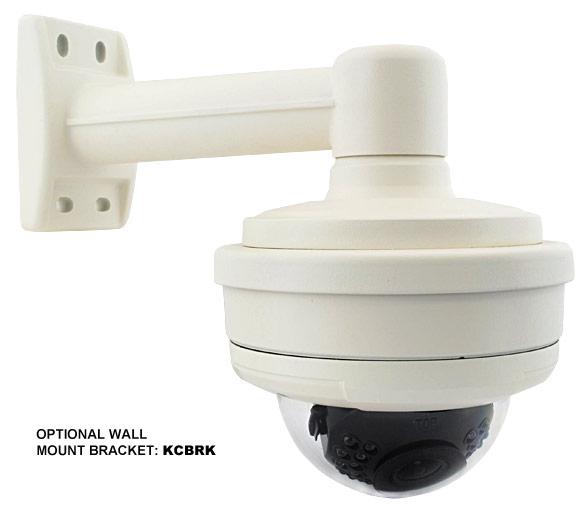

Add Wall Mount Bracket*
|
|
Features:
- True Day / Night
- Removable IR LED's

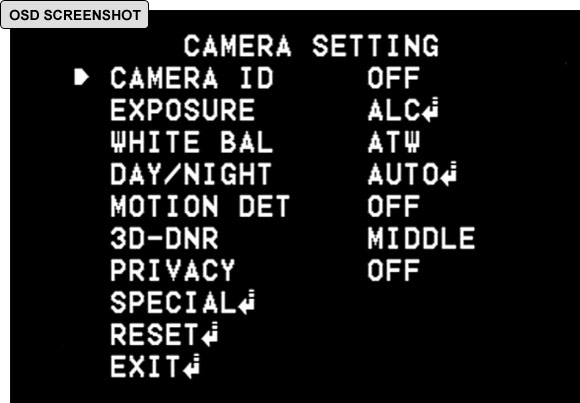

- OSD (On Screen Display)

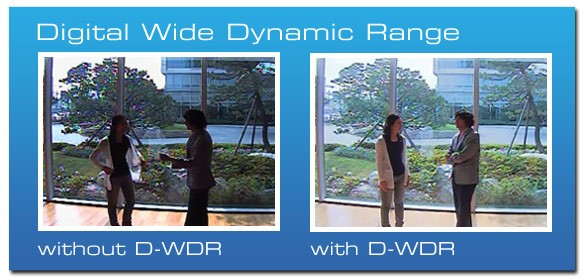

- D-WDR (Digital-Wide Dynamic Range)

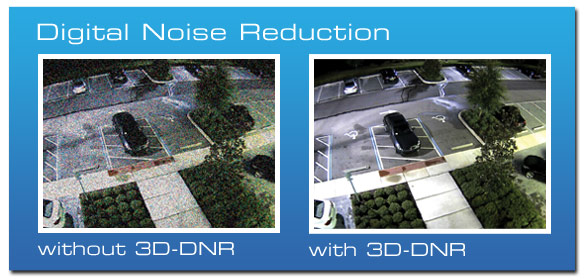

- 3D-DNR (Digital Noise Reduction)
- 3 Axis Gimbal Bracket
- Wall or Ceiling Mount
- Easy Zoom & Focus Adjustment
- Installer Video Out
- Weatherproof (IP66)
- Vandal Resistant (Polycarbonate Dome)
- Dual Voltage
| KCIAD602V Specifications |
| Image Sensor |
1/3" Sony Super HAD II CCD |
| Resolution |
630 lines |
| Video Output |
1.0Vp-p, 75 Ohm |
| Total Pixels (H*V) |
811 x 508 |
| Effective Pixels (H*V) |
768 x 494 |
| Lens |
2.8~11mm Varifocal (DC Auto Iris) |
| Minimum Illumination |
0 Lux (IR On) |
| Infrared |
60 ft. (30 LEDs) |
| S/N Ratio |
> 52db (AGC Off) |
| Auto Gain Control |
OFF / LOW / MIDDLE / HIGH |
| White Balance |
ATW / MANUAL / PUSH |
| Electronic Shutter |
1/60s~1/100,000s (NTSC) |
| Back Light Compensation |
ON / OFF Selectable |
| 3D-DNR |
OFF / ON Selectable (LOW / MIDDLE / HIGH) |
| Sens-up |
OFF / AUTO (x2~x1024) |
| D&N Selection |
AUTO / COLOR / BW / EXT |
| D-WDR |
ON / OFF Selectable |
| HLM |
ON / OFF Selectable |
| Dead Pixel (DPC) |
Built-in OSD |

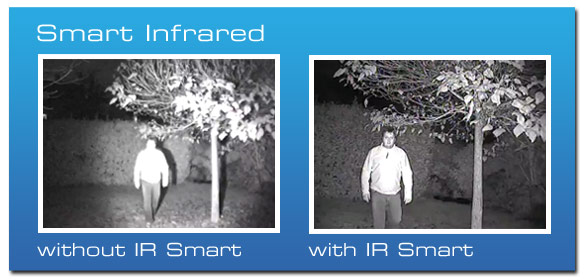

| IR Smart |
ON / OFF Selectable |
| Motion Detection |
OFF / ON (1~4 areas selectable) |
| Privacy Masking |
OFF / ON (1~8 areas selectable) |
| Mirror |
ON / OFF Selectable |
| Sharpness |
ON / OFF Selectable (level adjustable 1~50) |
| OSD |
Built-in |
| Mount |
Wall or Ceiling |
| Operating Temperature |
14°F to 122°F / -10°C to 50°C |
| Relative Humidity |
0~80% |
| Dimensions (Diam*H) |
145mm x 100mm / 5.7'' x 3.9'' |
| Weight |
Appx. 2 lbs (900g) |
| Power (power supply not included) |
DC 12V / AC 24V, 150mA (CDS ON: 500mA Max) |
Additional Images:
|
