DKCIB602VSN - Long Range High Resolution Infrared Varifocal Camera

Your Price: $299.00
In Stock

Model Number: DKCIB602VSN

Product Options

* denotes required field

Add Power Supply *

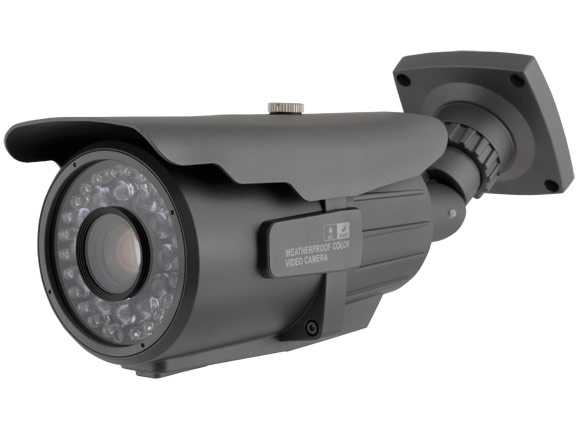

High Resolution Infrared Bullet Camera
High Resolution Infrared Bullet Camera

Due to amperage required, you should not install with plug and play cable, use RG59 instead. The DKCIB602VSN is ideal for use as a license plate camera.

  • 630 Lines Resolution
  • 200 ft. IR View Distance
  • 5~50mm Varifocal Lens
  • ICR (True Day / Night)
  • IR LED Controls
  • Cable Management Bracket
  • Vandal Resistant
  • Weatherproof
  • External Zoom / Focal Adjustment
  • Installer Video Out
DKCIB602VSN Specifications
Image Sensor 1/3" Sony Super HAD II CCD
Resolution 630 lines
Video Output 1.0Vp-p, 75 Ohm
Total Pixels (H*V) 811 x 508
Effective Pixels (H*V) 768 x 494
Lens 5~50mm Varifocal (DC Auto Iris)
Infrared 200 ft. (12 hi-power LEDs & 24 LEDs))
Minimum Illumination 0.01 Lux / 0 Lux (IR On)
S/N Ratio > 52db (AGC Off)
Auto Gain Control OFF / LOW / MIDDLE / HIGH
White Balance AWC / MANUAL / PUSH
Electronic Shutter 1/60s~1/100,000s (NTSC)
Back Light Compensation ON / OFF Selectable
3D-DNR ON / OFF Selectable (LOW / MIDDLE / HIGH)
Sens-up OFF / AUTO (x2~x1024)
D&N Selection AUTO / COLOR / BW / EXT
D-WDR ON / OFF Selectable
HLM ON / OFF Selectable
Dead Pixel (DPC) OFF / Auto (Max 64 pts)
IR Smart ON / OFF Selectable
Motion Detection OFF / ON (1~4 areas selectable)
Privacy Masking OFF / ON (1~8 areas selectable)
Lens Shading (LSC) ON / OFF Selectable (level adjustable 0~255)
Sharpness ON / OFF Selectable (level adjustable 0~50)
OSD Built-in
Weatherproof Rating IP66
Mount Wall or Ceiling
Operating Temperature 14°F to 122°F / -10°C to 50°C
Relative Humidity 0~80%
Dimensions (HxWxD) 3.5" x 3.4" x 7" / 88mm x 87mm x 177mm
Weight Appx. 4.4 lbs (2000g)
Power DC 12V, 150mA (CDS ON: 600mA Max) (power supply not included)

Need a power supply to manage multiple cameras? Click here

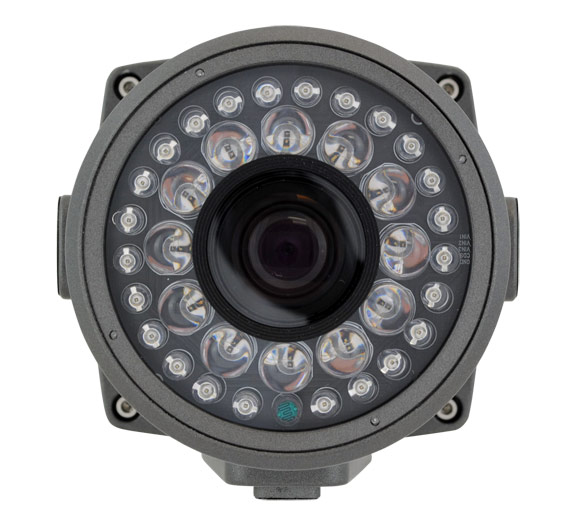

Front View
Front View

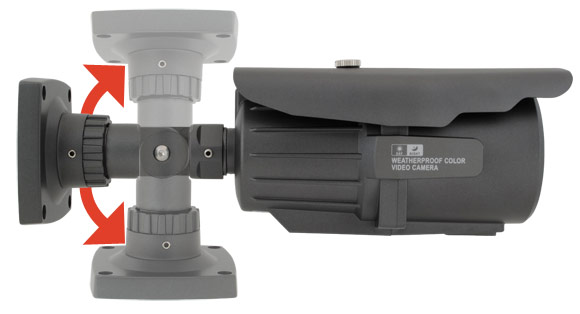

Side View
Side View

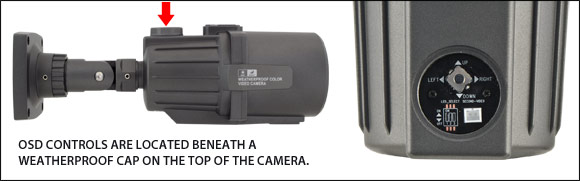

OSD Controls
OSD Controls Example Installation OSD Screenshot Digital Noise Reduction Digital Wide Dynamic Range Smart Infrared
