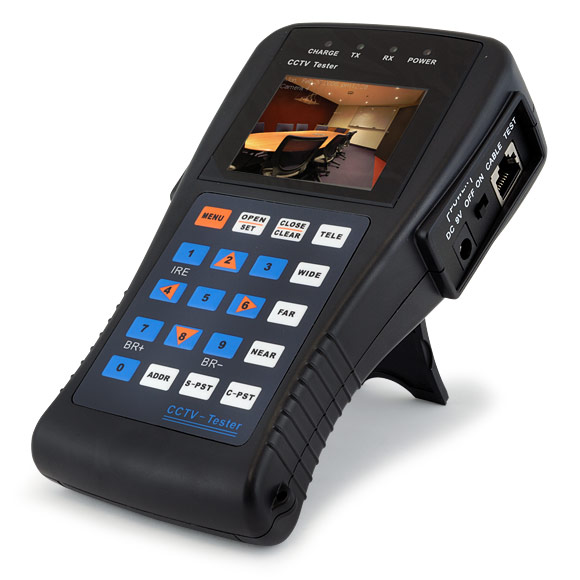

DPTZMON - Portable CCTV Tester w/ 2.5'' LCD Monitor

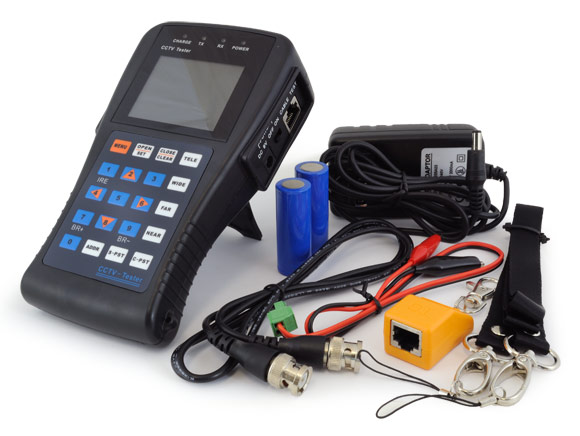

Product Includes:

• CCTV Tester
• Rechargeable Batteries (2)
• Power Adapter
• UTP Cable Tester
• BNC Connect Cable
• Test Lead Set
• Neck Strap
• User Manual

Features:

• Easy Operation
• 2.5'' LCD Screen
• NTSC/PAL adaptive
• Supports multi-protocol and baud rate
• On Screen Display
• Low Power Consumption

Specifications:

• Video Signal: NTSC/PAL (auto adaption)
• Video Display: 2.5'' LCD Screen (960x240)
• Video Input: 1 channel BNC
• Video Output: 1 channel BNC
• Communication: RS232, RS422 simplex and RS485
• Protocol: Pelco-D, Pelco-P, Samsung, Panasonic or customized
• Baud Rate: 2400, 4800bps, 9600bps, 19200bps
• Signal Generating: Output 1 channel video signal for testing monitor
• UTP Cable Test: Test UTP cable connection state and display on-screen
• OSD Menu: English OSD menu (supports multiple languages)
• Power Adapter: DC 9V
• Battery: 2 pcs 18490 standard batteries 3.7V, capacity 1400mAh
• Rechargeable: 5 hour operating time, 5 hour recharge time
• Low Consumption: Sleep mode, displays battery power state
• Work Temperature: -30°C ~ +70°C
• Work Humidity: 30%~90%
• Dimensions: 6.6'' x 3.9'' x 1.9'' / 170mm x 99mm x 48mm

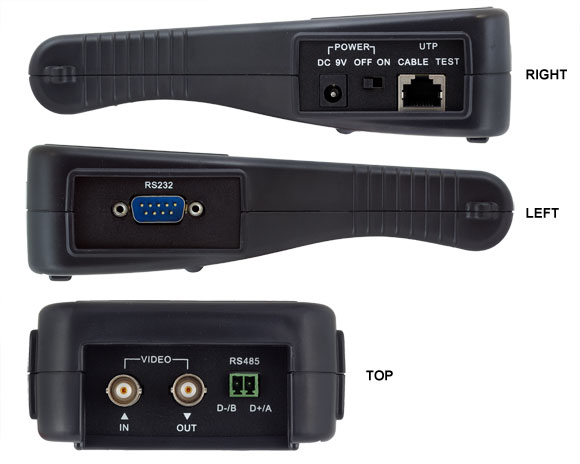

Additional Images:
