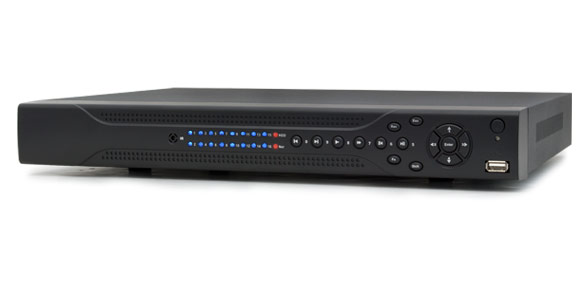

DVR16LT - 16 Camera H.264 480fps Pentaplex Embedded DVR
|
In Stock
Model Number: DVR16LT
Product Options
* denotes required field
Select hard drive capacity*
Add a monitor
Add DVR lockbox
|
|
 If you wish to record security cameras on the DVR you must add a hard drive.
If you do not add a hard drive to the DVR you will be able to view your cameras on your DVR (locally and remotely), but you will not be able to record your cameras.
When you purchase a hard drive from DSC, the price includes installation and 1 year warranty.
 Mobile Phone Compatibility: iPhone, Blackberry, Android, Windows Mobile, Symbian
 DVR Embedded Series Manuals & Software
 View live demo of DVR Embedded Series remote client
 Download PDF spec sheet
Product Includes:
- 16 Channel DVR
- No Hard Drive Included
- Remote Controller
- USB Mouse
- Software CD
- Operation Manual
- Power Adapter and Cord
Features:
- 16 channel real-time recording
- 16 channel real-time playback
- Mouse or front panel control
- Calendar search
- Web client allows real-time playback / remote control
| VR16LT Specifications |
| Operating System |
Embedded LINUX |
| System Resources |
Pentaplex function: live, recording, playback, backup & remote access |
| Control Mode |
Front panel, USB mouse, IR remote control, Keyboard, Network |
| Video Input |
16 channel, BNC (1.0Vp-p, 75) / 16 channel, BNC (1.0Vp-p, 75) |
| Video Output |
1 BNC, 1 VGA, 1 HDMI |
| Audio Input |
4 channel, BNC |
| Audio Input (continued) |
Channel 1 synchronized for bidirectional-talk |
| Audio Output |
1 channel, BNC (200-2800mV, 30K) |
| Display Split |
1/4/8/9/16 |
| Display Resolution |
Up to 1920×1080 |
| Privacy Masking |
4 self-defined four-sided zones for privacy masking for each camera |
| OSD |
Camera title, time, video loss, camera lock, motion detection, recording |
| Video / Audio Compression |
H.264 / G.711 |
| Recording Resolutions |
D1/4CIF (704×480) / CIF (352×240) / QCIF (176×120) |
| Recording Speed (Main Stream) |
Channels 1 & 9: D1/CIF/QCIF (1~30fps); Other Channels: CIF/QCIF (1~30fps), D1 (1~7fps) |
| Recording Speed (Extra Stream) |
QCIF (1~30fps), CIF (1~7fps) |
| Recording Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion detection, Camera blank, Video loss), Alarm, Stop |
| Trigger Events |
Recording, PTZ movement, Tour, Alarm, Email, Spot output |
| Motion Detection |
Zones: 396 (22×18), Sensitivity: 1~6 (level 6 is highest) |
| Video Loss & Camera Blank |
Support |
| Alarm Input |
16 Channel |
| Relay Output |
3 Channel |
| Playback Channel |
1/2/4/All |
| Search Mode |
Time/Date, Alarm, Motion Detection & Exact search (accurate to second) |
| Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom (any size) |
| Backup Mode |
Flash drive / USB HDD / USB DVD-RW / Network download |
| Ethernet |
RJ-45 port (10/100M) |
| Network Functions |
TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server |
| Hard Disk |
1 SATA port, Max 2TB HDD supported |
| USB Interface |
2 ports (1 for mouse control, 1 for backup) |
| RS485 |
PTZ Control |
| Power Supply |
AC 100~240 V, 50/60 Hz |
| Working Environment |
-10° ~+55° / 10~90% RH / 86~106kpa |
| Dimensions |
1U, 325mm×245mm×45mm (W*D*H) |
| Weight |
2.35KG (without HDD) |
back to top
Storage Capacity:
At the maximum frame rate (30 fps) this DVR will use approximately 5 to 7 gigabytes of hard drive space per camera, per day. Therefore, on a 500 gig hard drive with all 16 cameras hooked up you can store about 4 to 6 days of recorded video. A terabyte of storage would hold approximately 9 to 12 days of recorded video. The use of record time scheduling and motion detection can extend the recording capacity up to twice this amount. You may also tune down the record frame rate to increase your recording capacity (however this may affect video picture quality). Once the hard drive is full the unit will start recording over the oldest video.
 You may upgrade the HDD storage on this machine up to 1000 gigabytes (1 terabytes).
Please keep in mind that actual storage capacity varies greatly based on many factors including the resolution and imaging chip size of each camera, the amount of motion in the field of view, and of course the selected DVR features and settings such as the frame rate, scheduling, and motion detection. Recording audio will also use up storage space (approx 1-2 gigs per audio input per day).
Be careful when comparing our storage capacity to other DVRs. Often times other manufacturers will claim that their DVR will allow you to store months of video. Be aware that they may be assuming that the frame rate is turned all the way down to one frame per second which is not a practical setting to use.
Note: The storage capacity using H.264 (aka MPEG4+) video compression is similar to MPEG4. However the big improvement of this newer technology is in its image quality, especially at higher resolutions such as full D1. In plain terms this means that you may use slightly more hard drive space for H.264 but when playing back recorded video you will notice a clearer picture especially when viewing full screen.
back to top

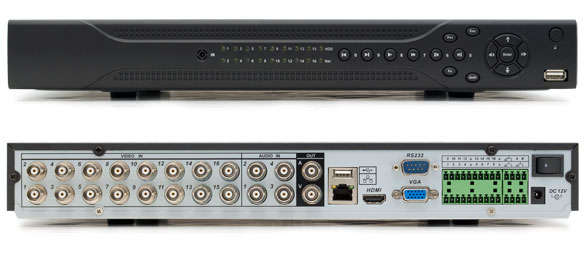

Additional Images:
back to top
|
Social Sharing
Product Reviews
| (2 Ratings, 2 Reviews) |
Average Rating:
|
Full documentation available on all DVRs
DSC Web Administrator
(Jacksonville, FL)
4/25/2012 9:55 AM
Full documentation / manuals are available for all of our Digital Video Recorders. Please contact tech support for download instructions.
|
Good DVR, poor documentation
Curtis Morrison
(Saint Louis, MO)
4/24/2012 9:29 PM
I've been successfully running this DVR at home for almost six months now with no problems. It works very well. The web-based functionality works good, but is very picky about the version of Internet Explorer that you are running. The documentation is very poor. I'm not sure why DSC won't post the full manual, as the manual provided is only for quick start purposes.
|
|
|
|
