DVR32PRO - 32 Camera H.264 960fps Pentaplex Embedded DVR

Product Includes:

• 32 Channel DVR
• 1 Terabyte HDD
• CD/DVD-RW Drive
• Remote Controller
• USB Mouse
• Software CD
• Operation Manual
• Built-in Power Supply

Features:

• 32 channel real-time recording
• 16 channel audio input
• 16 channel playback
• Up to 8 HDD's
• Calendar search

back to top

Storage Capacity:

At the maximum frame rate (30 fps) this DVR will use approximately 5 to 7 gigabytes of hard drive space per camera, per day. Therefore, on a 500 gig hard drive with all 32 cameras hooked up you can store about 2 to 3 days of recorded video. A terabyte of storage would hold approximately 4.5 to 6 days of recorded video. The use of record time scheduling and motion detection can extend the recording capacity up to twice this amount. You may also tune down the record frame rate to increase your recording capacity (however this may affect video picture quality). Once the hard drive is full the unit will start recording over the oldest video.

You may upgrade the HDD storage on this machine up to 8000 gigabytes (8 terabytes).

Please keep in mind that actual storage capacity varies greatly based on many factors including the resolution and imaging chip size of each camera, the amount of motion in the field of view, and of course the selected DVR features and settings such as the frame rate, scheduling, and motion detection. Recording audio will also use up storage space (approx 1-2 gigs per audio input per day).

Note: The storage capacity using H.264 (aka MPEG4+) video compression is similar to MPEG4. However the big improvement of this newer technology is in its image quality, especially at higher resolutions such as full D1. In plain terms this means that you may use slightly more hard drive space for H.264 but when playing back recorded video you will notice a clearer picture especially when viewing full screen.

back to top

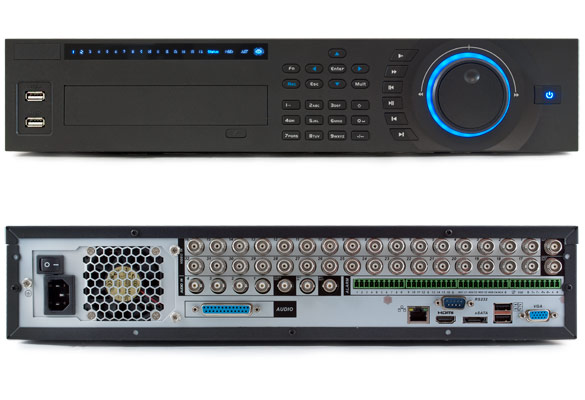

Additional Images:
