DWDVR8 - Complete Weatherproof DVR Solution

This weatherproof DVR package includes everything you need for remote site recording.
It includes a NEMA rated outdoor enclosure with fan, a full featured H.264 compression DVR for extended record time and faster network transmission, a 9 channel 12V power supply to power cameras and microphones, and 2 110V outlets for additional requirements such as 24V devices like heated housings or PTZs. Additional options include an internal monitor for on-site viewing as well as a 2.4 Gig wireless bridge for transmitting distances up to 3 miles over wireless LAN.

System Features:

• Optiview Full Feature DVR
• 9 Channel, 10Amp Camera Power
• H.264 Video Compression
• Weatherproof Housing
• NEMA Type 3R / IP42 Rated
• Thermostatic Cooling Fan
• 8 Channel Video
• 1 Terabyte HDD
• 110V Outlet for Added Devices
• Add Wireless Bridge for up to 3 mile Line of Sight Transmission (DIP24)
• Total Current 0.50 Amp
• Total Power: Approx. 60 watts
• Input Voltage: 115V AC
• Dimensions (W*L*H): 13.5in x 8.75in x 15.3in

DVR Specifications:

• Image Compression: H.264
• Operating System: Embedded Linux
• Operation: Triplex(Playback / Record / Network View)
• Video Input: BNC x 8, 1.0Vp-p, 75 ohm
• Video Output: BNC to main monitor
• Video Output: VGA 800 x 600, 1024 x 768, 1280 x 1024 pixels
• Hard Drive: 1 HD Maximum (1 Terabyte HD Included)
• Display: 30 fps per channel (@720 x 480)
• Recording Rate: 240 fps (@360 x 240), 120 fps (@720 x 480), 60 fps (@720 x 480)
• Recording Qualities: 8 Preset Levels
• Recording: Schedule, Alarm, Motion Detection
• Search: Time, Date, Event
• Playback Speeds: 1X, 2X, ...32X
• Alar Inputs: 4 D-Sub
• Alarm Outputs: 1 relay output D-Sub
• Pre-Alarm operation: Yes
• PTZ Control: RS-485 interface
• Archiving: USB 2.0, network
• Network: Ethernet RJ-45 connector, 10/100 mbps, supports DHCP
• Remote Operation: Monitor, Playback, Recording, System Setup, Archiving
• Password Control: 2 Level, Adminstrator / User
• Operation Temperature: -5°C to 40°C (23°F to 104°F)
• Weight: 18 lbs.

Additional Images:

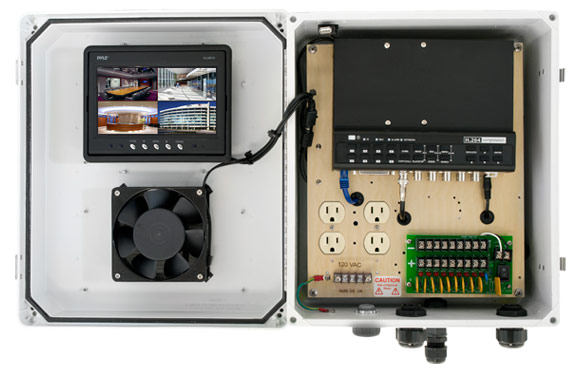

*Shown with optional LCD monitor




*Pole mount bracket (WBRKT purchased separately)
