DWIP4 - VR Series Long Range Wireless Video Transmission System

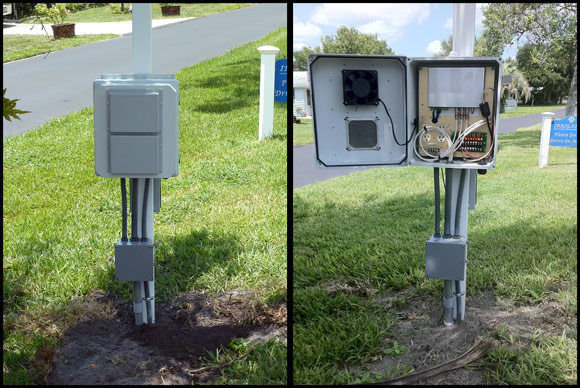

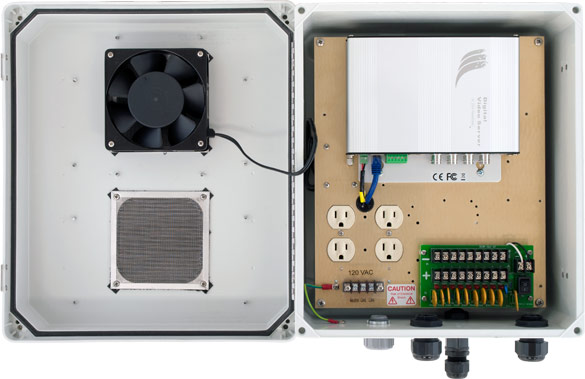

This long range 4 channel wireless analog video transmission package consists of an outdoor weatherproof housing enclosing a 9 channel - 10 Amp power supply for your cameras' power. It also encloses a H.264 realtime 4 channel video server with an "easy connect" wireless bridge that can be mounted anywhere near the control box for easy line of sight tranmitting range.

System Features:

• Full featured DVR software
• Compatible with VR Series DVRs
• Data Rate Transfer Rate: 54 Mpbs with 2.4 Ghz, 802.11g
• 9 channel, 10 Amp camera power
• H.264 video transmission
• Weatherproof housing
• NEMA Type 3R / IP42 rated
• Thermostatic cooling fan
• 4 channel video server (DVS4)
• 110v outlet for added devices
• Up to 3 mile line of sight transmission (DIP24)

Wireless Bridge (DIP24) Features:

• Up to 3 mile line of sight transmission
• Up to 54 Mpbs with 2.4 Ghz, 802.11g
• True plug and play installation
• 5 point security including WPA encryption
• Web based configuration tool
• Transparent network bridge passes DHCP
• Supports multiple MAC addresses

IP Server (DVS4) Features:

• Embedded OS
• Embedded MCU
• High performance DSP hardware compression
• H.264 video compression algorithm and each channel can be real time 30FPS
• Motion detection
• Configurable OSD
• Variable bit rate or variable frame rate
• Dual-stream and the sub stream can support CIF/QCIF compression resolution
• TCP, UTP, RTP, Multicast, DHCP, etc
• Remote parameters setup
• Remote upgradeable firmware
• Remote control PTZ
• Supports Internet Explorer viewing
• Remote alarm information
• Max support 4CIF compression resolution real time

Additional Images:

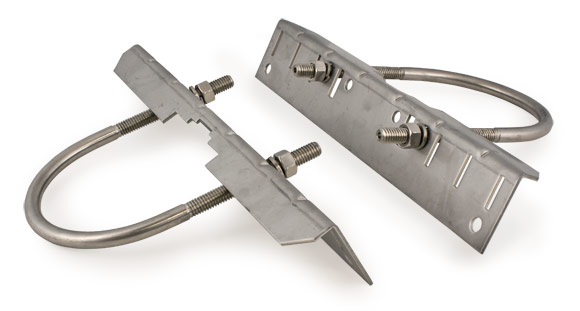

*Pole mount bracket (WBRKT purchased separately)
