PWR1820 - 18 Channel Power Supply with Thermal Fuses

This power box will allow up to 18 cameras, which allows you to power all your cameras from one location instead of each camera drop.
Click here for more information about wiring your security camera system.
Click here for more information about thermal vs. glass fuses.

Features:

• Wall mount design
• Metal covered case with lock

Specifications:

• Input: 110V AC
• Output: 12V DC x 18 outputs
• Supply Current: 20 Amp
• Max. Amp: 1.1Amp per channel
• Fuse Type: PTC (maintenance free thermal fuse)

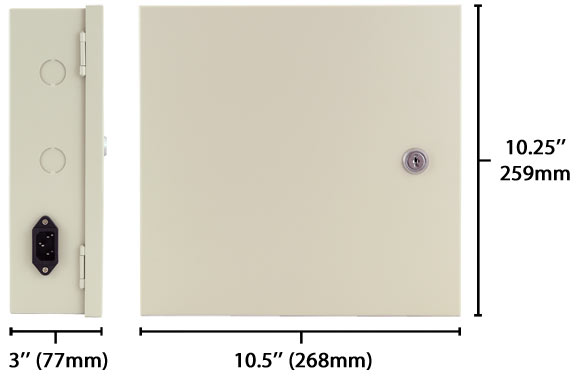

• Measurement (H*W*D): 10.5" x 10.25" x 3" (see below)
• Weight: 4.5 lbs (2kg)

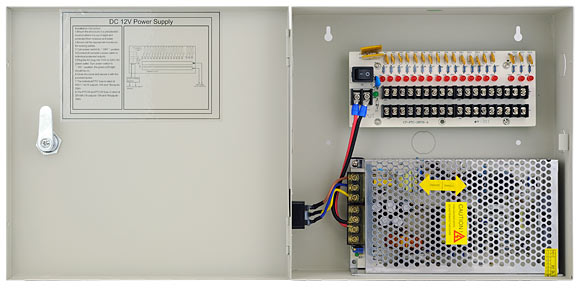

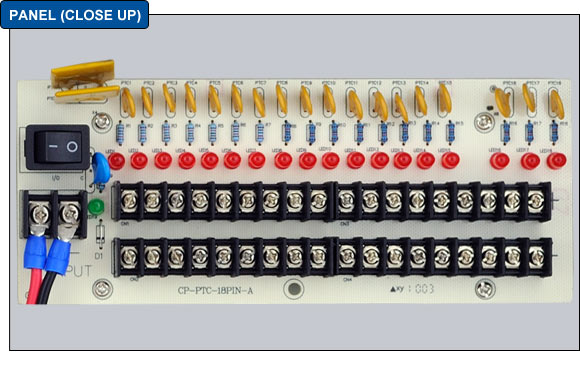

Additional Images:
