DSC420DV - Color 420 Line Fire Sprinkler Camera (Down view only)

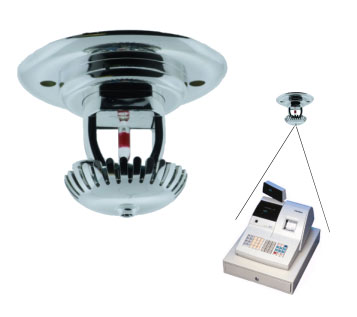

An excellent quality 420 line resolution color camera is hidden in the fire sprinkler housing, featuring a lower minimum illumination than our SC420! Just cut a hole in your ceiling and push it up in. Plug wire into it and you are all set! Made from a real non-functioning fire sprinkler head. No one will ever know it is there.

Note: The fire sprinkler is non-functional and hidden camera is faced downward.

Specifications

• Image device: 1/4" Sony CCD
• Horizontal resolution: 420 TV Lines
• TV system: NTSC
• NTSC (H X V ) : 512 X 492
• Minimum illumination: 0.8Lux (F: 1.2)
• Electronic Shutter: NTSC = 1/60 - 1/100,000 seconds
• Video output: 1 Vp-p, 75-ohm, negative
• S/N ratio: > 48dB (AGC off)
• Lens: Board Lens 3.7mm
• Gamma: 0.45
• BLC: on
• BNC Connection
• Dimensions ( L x W x H ): 66 x 60 x 105(mm)
• Weight: 1 lbs
• Storage Temp: -20°C ~ 60°C (-4°F ~ 140°F)
• Operating Temp: -10°C ~ 50°C (14°F ~ 122°F)
• Power Consumption: 150 mA
• Power: 12V DC (not included)
