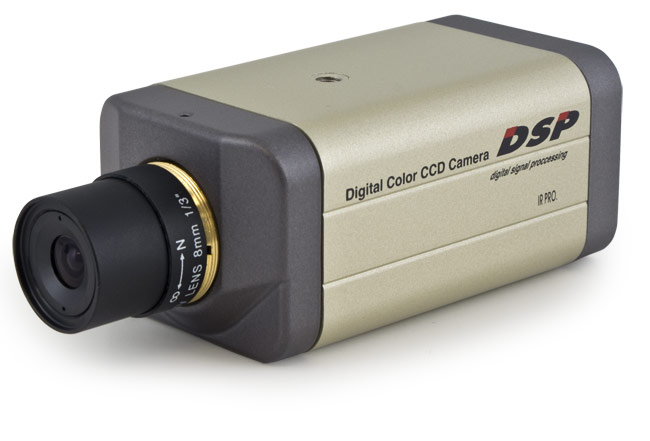

Day / Night 580 Line C-Mount Camera
|
In Stock
Model Number: EXVIEW-DN
Product Options
* denotes required field
Add Lens*
Add indoor mounting bracket*
Add outdoor housing and mounting bracket*
|
|
This color camera has the highest resolution possible and with a .01 lux SONY imaging chip in it you have about the best camera on the market. And with the added capability of being able to see at very low light levels, you have a combo that cant be beat! Excellent choice for a DVR!
Notes:
- The lens and bracket are selected separately (see above).
- If you want to use this camera outdoors you need to put it in an outdoor housing. Keep in mind that the housings are not small, they are over a foot long. They look fine in an industrial or business application but may be inappropriate for some residential applications.
- For more info on calculating field of view, check out our Lens Calculator Tool.
Features:
- SONY 1/3" Super HAD CCD sensor
- Day/Night CCD
- 580 Resolution lines
- 2X digital zoom, mirror function
- Comes with 12VDC Power Supply
Specifications:
- 1/3 Super HAD exview CCD
- 0.01 lux at F/1.2
- 580 TV lines
- White Balance ATW/AWB switchable
- Auto Gain Control AGC ON/OFF switchable
- S/N Ratio 52dB (MIN) / 60dB (TYP)(AGC OFF)
- Electronic Shutter 1/60-1/120,000sec.
- Auto Iris Video/DC/A.E.S.
- B.L.C. Function ON/OFF switchable
- Mirror Function ON/OFF switchable
- 2X Digital Zoom ON/OFF switchable
- Video Output 1.0 Vp-p at 75 ohm composite,
- Gamma Correction 0.45Operation Temp. -20c to +50c
- Lens Mount CS mount
- (C mount capable with adaptor)
- Power Source DC 12 V 150mA, AC 24V
- Dimensions 2.28(W) X 2.05(H) X 3.86(D) inches
- Dimensions 58(W) X 52(H) X 98(D) mm
- Weight 350g (0.77 lb)
- 12VDC power supply included in package
- 24VAC Power supply compatible
Note: Due to amperage required, you should not install with plug and play cable, use RG59 instead. Feel free to call for more info.
|

Use this bracket for mounting c-mount cameras indoors. Wall or ceiling mount. Model: C-BRACKET
|

Use this bracket for wall mounting outdoor camera housings. Model: FOB
|
|
|
|
|
|
|
|
|
|
|
| | |
