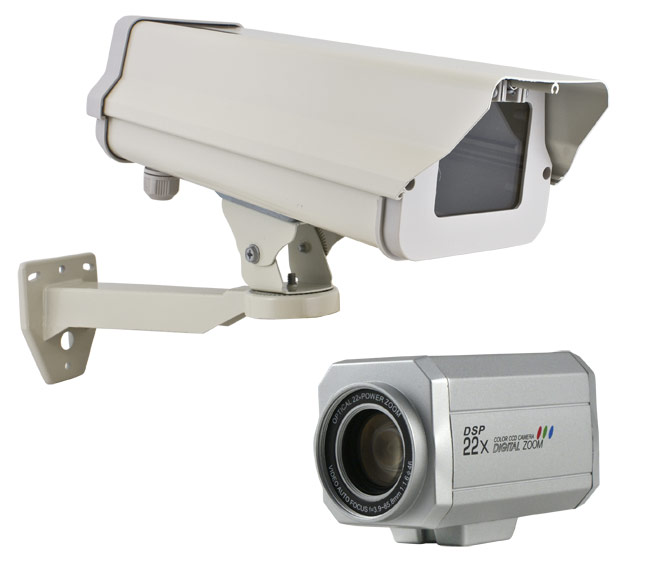

DCM22XKIT - 22X Varifocal Zoom Module Camera Kit

This kit includes everything you need to install the high resolution day / night c-mount color camera outdoors - including the camera, lens, outdoor housing, and bracket for installation. Excellent choice for a DVR!

This camera comes with a built-in 3.9 to 85.8mm varifocal lens.

For more info on calculating field of view, check out our lens calculator tool.

Features:

• Built-in 3.9 - 85.8mm Varifocal Lens
• Day / Night
• On Screen Display

Specifications:

• Image Sensor: 1/4" Sony Day / Night CCD
• Resolution: 470 TV lines
• Min Illumination: 0.5 Lux
• Lens: 3.9 - 85.8mm varifocal
• Signal to Noise Ratio: Greater than 50db
• White Balance: Auto
• Gain Control: Auto
• Electronic Shutter: On/Off Switchable
• Back Light Compensation: On/Off Switchable
• Connection Type BNC
• Power Supply: DC 12V (not included)

Housing Specifications:

• Dimensions: 330mm(diameter) x 100mm(width) x 120mm(height) (From Peak = 385mm)
• Max Camera Size: 160mm(diameter) x 85mm(width) x 70mm(height)
• Window Area: 67mm x 57mm
• Plate Glass Weight: 2850 grams
