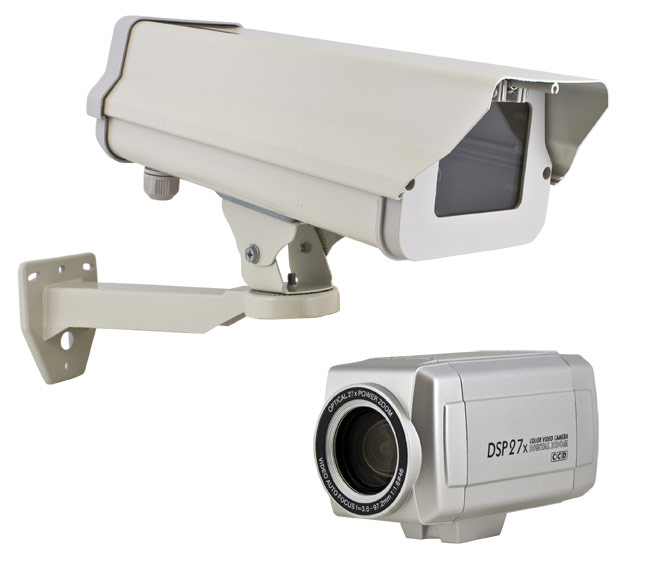

DCM27XKIT - 27X Varifocal Zoom Module Camera Kit

This kit includes everything you need to install the high resolution day / night c-mount color camera outdoors - This kit includes the camera, built-in lens, and outdoor housing & bracket for installation. Excellent choice for a DVR!

This camera comes with a built-in 3.2 to 86.4mm varifocal lens.

Can be controlled locally and remotely if you run an RS485.

Convert your screw down terminal to 2.1mm male to fit your power supply or plug and play cable with the PWRADT-0.

For more info on calculating field of view, check out our lens calculator tool.

Features:

• Built-in 3.2 to 86.4mm Varifocal Lens
• Day / Night
• On Screen Display
• RS-485 control

Specifications:

• Image Sensor: 1/4" Sony Day/Night CCD
• Resolution: 480 TV lines
• Min Illumination: 0.1 Lux (Day/Color), 0.01 Lux (Night/BW)
• Lens: 3.2 to 86.4mm
• Protocol: Pelco-D
• Signal to Noise Ratio: Greater than 48db
• White Balance: Auto
• Gain Control: Auto
• Electronic Shutter: On/Off Switchable
• Back Light Compensation: On/Off Switchable
• Connection Type BNC
• Operation Temp: -10°C - 50°C (14°F - 122°F)
• Dimensions (WxHxL): 58mm x 58mm x 103mm / 2.28in x 2.28in x 4.06in
• Power Supply: 12V DC (not included)

Housing Specifications:

• Dimensions: 330mm(diameter) x 100mm(width) x 120mm(height) (From Peak = 385mm)
• Max Camera Size: 160mm(diameter) x 85mm(width) x 70mm(height)
• Window Area: 67mm x 57mm
• Plate Glass Weight: 2850 grams
