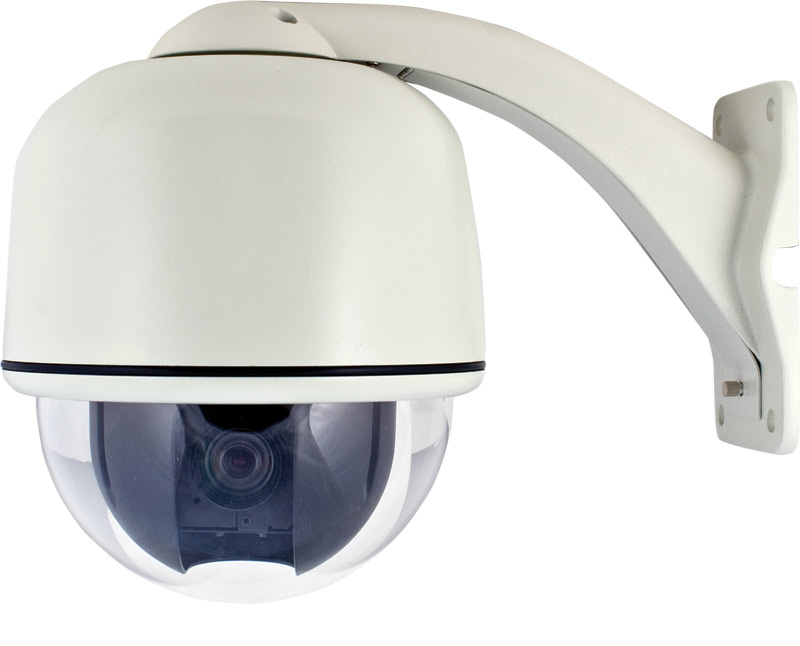

DCS27X - 27X Constant Speed Day/Night Camera

To use a PTZ camera on our PC-Based DVRs, you must have an RS485 Converter.

Due to amperage required, you should not install with plug and play cable, use RG59 instead.

When installing the DCS27X with the pole or corner mount, a small modification will be necessary.

Product Includes:

• Wall bracket
• Installation / Instruction Manual
• Free Technical Support
• Power Supply

Features:

• Day / Night
• 0.3 / 0.01 Lux
• 27X Optical Zoom
• Auto Flip
• RS485
• Indoor / Outdoor
• Aluminum Construction

Specifications:

• Image sensor: 1/4" Sony CCD
• Horizontal Resolution: 480 TV Lines (Color)
• Effective Pixels: 752 (H) x 582 (V)
• Minimum Illumination: 0.3 Lux (color) / 0.01 Lux (b&w)
• Lens: 3.6~97.2mm (auto/manual focus)
• Optical Zoom: 27X
• SN Ratio: ≥ 50db
• White Balance: Auto
• Iris: Auto/Manual
• Back light Compensation: Auto
• Pan Angle: 360° continuous pan rotation
• Pan Speed: 80° per second
• Tilt Speed: 0.5°~40° per second
• Auto Flip: 90° auto flip
• Communication Interface: RS485
• Operating Temperature (indoor): 0°C ~ 50°C (22°F ~ 122°F)
• Weight: 6 lbs (2.72kg)
• Power Supply: DC 12V (included)
