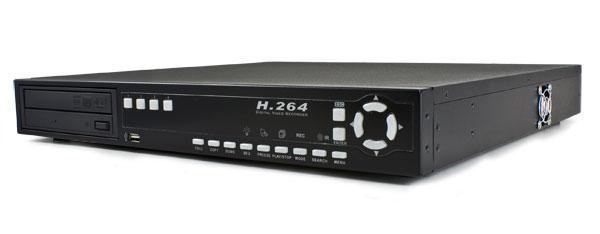

DDVRH4 - 4 Camera H.264 120fps Triplex Embedded DVR with DVD-RW backup

Regular Price: $725.00
Your Price: $399.00
You Save: $326.00
In Stock

Model Number: DDVRH4-500-Clearance

Product Options

* denotes required field

Add hard drive space*
Add a monitor*
Add DVR lockbox*
Mobile Support

Downloads & Support H Series Support Files

H Series live demo View live demo of the H Series remote client

helpful info H Series CMS Software...see what it can do!

helpful info Mobile Phone Compatibility: iPhone, Blackberry, Android, Windows Mobile, Symbian


Features:

  • Compatible with iPhone, Blackberry, and Droid mobile phones
  • 4 Channel Input
  • Triplex (Recording, Playback, Network all at the same time)
  • H.264 Compression
  • Hybrid (supports IP cameras)
  • Remote Viewing
  • Real Time Display
  • Up to 120fps Recording Speed
  • Calendar Search
  • Full Mouse Support
  • Archiving via USB and DVD-RW
  • Stable Operation System (Embedded Linux)
  • Central Management System (CMS) software for large scale video management
  • Firmware Upgradeable
  • Scheduled Recording
  • Password Protection
  • Network Connection
  • IE Web Server and Remote Client
  • PTZ Control via RS-485 (Pelco D, Pelco P)
  • Camera Installation Plug & Play
  • Automatic Camera Detection
  • Supports Covert Camera Operation
  • Supports Pre-Alarm Recording
  • USB 2.0 Port for Video Clip Exporting
  • Built with ezBurnTM, ezRecordTM, ezDDNSTM Technologies
  • IR Remote Control Included
back to top

Specifications:

  • Camera Inputs: 4
  • Image Compression: H.264/MJPEG
  • Operating System: Embedded Linux
  • Video Input: BNC x 4, 1.0Vp-p, 75 ohm
  • Video Output: BNC to main monitor
  • Audio Input: 4 inputs
  • Audio Output: 2 outputs
  • Hard Drives: 1 - 500 Gig drive included, 2 HD Maximum (up to 2 Terabyte)
  • Display: 30 fps per channel (@720 x 480)
  • Recording Rate: 120 fps (@352 x 240), 60 fps (@720 x 240), 30 fps (@720 x 480)
  • Recording Qualities: 8 Preset Levels
  • Recording: Schedule, Alarm, Motion Detection
  • Alarm Inputs: 4 D-Sub
  • Alarm Outputs: 1 relay output D-Sub
  • Archiving: USB 2.0
  • Network: Ethernet RJ-45 connector, 10/100Mbps, supports DHCP, DDNS
  • General Unit Dimensions: (H*W*L) 2.5in × 17.25in × 14.75in / 180mm × 55mm × 300mm
  • Unit Weight: 6.8 kg (15 lbs)
  • Operation Temperature: -5°C~40°C (23°F~104°F)
back to top

Storage Capacity:

At the maximum frame rate (30 fps) this DVR will use approximately 5 to 7 gigabytes of hard drive space per camera, per day. Therefore, on a 500 gig hard drive with all 4 cameras hooked up you can store about 18 to 24 days of recorded video. The use of record time scheduling and motion detection can extend the recording capacity up to twice this amount. You may also tune down the record frame rate to increase your recording capacity (however this may affect video picture quality). Once the hard drive is full the unit will start recording over the oldest video.

info You may upgrade the HDD storage on this machine up to 2000 gigabytes (2 terabyte).

Please keep in mind that actual storage capacity varies greatly based on many factors including the resolution and imaging chip size of each camera, the amount of motion in the field of view, and of course the selected DVR features and settings such as the frame rate, scheduling, and motion detection. Recording audio will also use up storage space (approx 1-2 gigs per audio input per day).

Be careful when comparing our storage capacity to other DVRs. Often times other manufacturers will claim that their DVR will allow you to store months of video. Be aware that they may be assuming that the frame rate is turned all the way down to one frame per second which is not a practical setting to use.

back to top

Additional Images:


Front View of DDVRH4 Rear View of DDVRH4

H Series Calendar Search
H Series System Setup
H Series Playback
H Series System Setup
H Series Search
back to top

Social Sharing

Product Reviews

(5 Ratings, 1 Review) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
manager
John Sabol (Valparaiso, IN) 4/30/2010 12:08 AM
I purchased this DVR and set it up. It was very easy to set up and to get threw all of the items that we needed programed in and to get up and running. One of its greatest benefits is the mouse capabilities. You can just sail threw and get to what you need and move on. The instruction manual that comes with it, is easy to understand and helpful with answers when in doubt. I would give this a 4 star rating and buy a second unit if needed.
