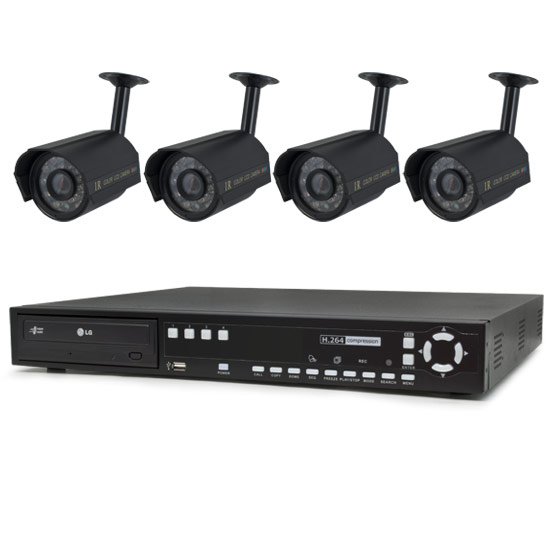

DDVRH4IR - 4 Camera H.264 Realtime Triplex Embedded Camera System

System Includes:

• 4 Camera H.264 120fps Triplex Embedded DVR with DVD-RW backup (DDVRH4-500)
• 4 - Infrared Bullet Cameras (DIRB420)
• 4 - 65ft. Plug & Play Cables (DCAB65)
• 4 - 12V DC Power Supplies (PWR1A)

Features:

• Compatible with iPhone, Blackberry, and Droid mobile phones
• 4 Channel Input
• Triplex (Recording, Playback, Network all at the same time)
• H.264 Compression
• Hybrid (supports IP cameras)
• Remote Viewing
• Real Time Display
• Up to 120fps Recording Speed

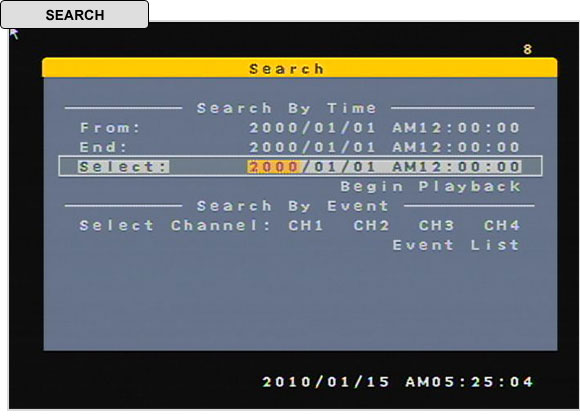

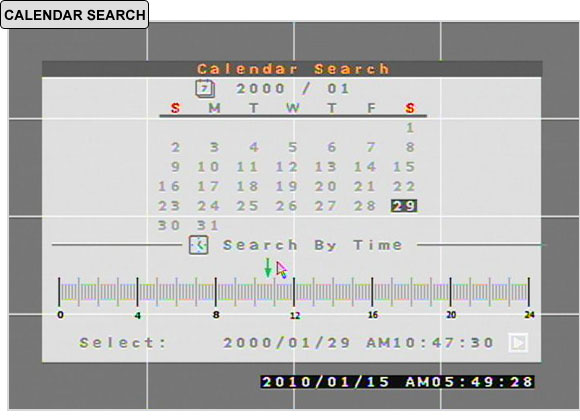

• Calendar Search
• Full Mouse Support
• Archiving via USB and DVD-RW
• Stable Operation System (Embedded Linux)
• Central Management System (CMS) software for large scale video management
• Firmware Upgradeable
• Scheduled Recording
• Password Protection
• Network Connection
• IE Web Server and Remote Client
• PTZ Control via RS-485 (Pelco D, Pelco P)
• Camera Installation Plug & Play
• Automatic Camera Detection
• Supports Covert Camera Operation
• Supports Pre-Alarm Recording
• USB 2.0 Port for Video Clip Exporting
• Built with ezBurnTM, ezRecordTM, ezDDNSTM Technologies
• IR Remote Control Included

Specifications:

• Camera Inputs: 4
• Image Compression: H.264/MJPEG
• Operating System: Embedded Linux
• Video Input: BNC x 4, 1.0Vp-p, 75 ohm
• Video Output: BNC to main monitor
• Audio Input: 4 inputs
• Audio Output: 2 outputs
• Hard Drives: 1 - 500 Gig drive included, 2 HD Maximum (up to 2 Terabyte)
• Display: 30 fps per channel (@720 x 480)
• Recording Rate: 120 fps (@352 x 240), 60 fps (@720 x 240), 30 fps (@720 x 480)
• Recording Qualities: 8 Preset Levels
• Recording: Schedule, Alarm, Motion Detection
• Alarm Inputs: 4 D-Sub
• Alarm Outputs: 1 relay output D-Sub
• Archiving: USB 2.0
• Network: Ethernet RJ-45 connector, 10/100Mbps, supports DHCP, DDNS
• General Unit Dimensions: (W x H x D) 362mm x 90mm x 350mm (14.3in x 3.5in x 13.8in)
• Unit Weight: 6.8 kg (15 lbs)
• Operation Temperature: -5C - 40C (23F - 104F)

Storage Capacity:

At the maximum frame rate (30 fps) this DVR will use approximately 5 to 7 gigabytes of hard drive space per camera, per day. Therefore, on a 500 gig hard drive with all 4 cameras hooked up you can store about 18 to 24 days of recorded video. The use of record time scheduling and motion detection can extend the recording capacity up to twice this amount. You may also tune down the record frame rate to increase your recording capacity (however this may affect video picture quality). Once the hard drive is full the unit will start recording over the oldest video.

You may upgrade the HDD storage on this machine up to 2000 gigabytes (2 terabyte).

Please keep in mind that actual storage capacity varies greatly based on many factors including the resolution and imaging chip size of each camera, the amount of motion in the field of view, and of course the selected DVR features and settings such as the frame rate, scheduling, and motion detection. Recording audio will also use up storage space (approx 1-2 gigs per audio input per day).

Be careful when comparing our storage capacity to other DVRs. Often times other manufacturers will claim that their DVR will allow you to store months of video. Be aware that they may be assuming that the frame rate is turned all the way down to one frame per second which is not a practical setting to use.

Note: The storage capacity using H.264 (aka MPEG4+) video compression is similar to MPEG4. However the big improvement of this newer technology is in its image quality, especially at higher resolutions such as full D1. In plain terms this means that you may use slightly more hard drive space for H.264 but when playing back recorded video you will notice a clearer picture especially when viewing full screen.

Important Note about Package Pricing:

The price for this DVR camera package reflects a discount off the total than if each item was purchased separately. Therefore, if an individual item is returned from the package, the refunded amount will also reflect the package discount. For example, if the package price is 20% less than if you bought each part individually, then for each item returned you would be refunded the full individual price minus the 20% overall discount. For a full description of return and warranty policies, click here.
