DDVRMINIH16 - 16 Camera H.264 240fps Triplex Embedded DVR with USB backup

H Series CMS Software...see what it can do!

This is a great little machine for the money. It has all the most desirable features including H.264 compression, triplex operation (can view, record, and playback all at the same time), PTZ support, and remote viewing capability.

Special Offer!
For a limited time we are offering a 19in Widescreen VGA color monitor for only $99 with the purchase of this DVR. See Product Options above for this and other monitor choices. Please note that if you choose to return the DVR you must also return the monitor in order to receive a full refund.
Refer to our return policy for full return information.

Features:

• 16 Channel Input
• Triplex (Recording, Playback, Network all at same time)
• H.264 Compression
• Remote Viewing
• Real Time display
• Up to 240fps Recording Speed
• Archiving via simple "1-touch" USB operation
• Stable Operating System (Embedded Linux)
• Firmware Upgradable
• Scheduled Recording
• Password Protection
• IE Web Server and Remote Client
• PTZ control via RS-485 (Pelco D, Pelco P)
• Camera Installation Plug & Play
• Automatic Camera Detection
• Supports Covert Camera Operation
• Supports Pre-Alarm Recording
• IR Remote Control Included

Back to Top

Specifications:

• Camera Inputs: 16
• Image Compression: H.264
• Embedded Linux Operating System
• Triplex (Playback / Record / Network View)
• Video Input: BNC x 16, 1.0Vp-p, 75 ohm
• Video Output: BNC to main monitor
• Video Output: VGA 800 x 600, 1024 x 768, 1280 x 1024 pixels
• Audio Input: 16 input
• Audio Output: 2 output
• Hard Drives: 1 - 500 Gig drive included, 2 HD Maximum (up to 2 Terabyte)
• Display: 30 fps per channel (@720 x 480)
• Recording Rate: 240 fps (@360 x 240), 120 fps (@720 x 240), 60 fps (@720 x 480)
• Recording Qualities: 8 Preset Levels
• Recording: Schedule, Alarm, Motion Detection
• Search: Time, Date, Event
• Alarm Inputs: 16 D-Sub
• Alarm Outputs: 1 relay output D-Sub
• Pre-alarm Recording: Yes
• PTZ Control: RS-485 interface
• Network: Ethernet RJ-45 connector, 10/100Mbps, supports DHCP
• Remote Operation: Monitor, Playback, Recording, System Setup, Archiving
• Password Control: 2 level, Administrator/User
• General Unit Dimensions: 9in(W) * 13in(D) * 2in(H)
• Unit Weight: 8 lbs
• Operation Temperature: -5C - 40C (23F - 104F)
• Relative Humidity: 10% - 90% Non-condensing

Back to Top

Storage Capacity:

At the maximum frame rate (30 fps) this DVR will use approximately 5 to 7 gigabytes of hard drive space per camera, per day. Therefore, on a 500 gig hard drive with all 16 cameras hooked up you can store about 4.5 to 6 days of recorded video. The use of record time scheduling and motion detection can extend the recording capacity up to twice this amount. You may also tune down the record frame rate to increase your recording capacity (however this may affect video picture quality). Once the hard drive is full the unit will start recording over the oldest video.

You may upgrade the HDD storage on this machine up to 2000 gigabytes (2 terabyte).

Please keep in mind that actual storage capacity varies greatly based on many factors including the resolution and imaging chip size of each camera, the amount of motion in the field of view, and of course the selected DVR features and settings such as the frame rate, scheduling, and motion detection. Recording audio will also use up storage space (approx 1-2 gigs per audio input per day).

Be careful when comparing our storage capacity to other DVRs. Often times other manufacturers will claim that their DVR will allow you to store months of video. Be aware that they may be assuming that the frame rate is turned all the way down to one frame per second which is not a practical setting to use.

Back to Top

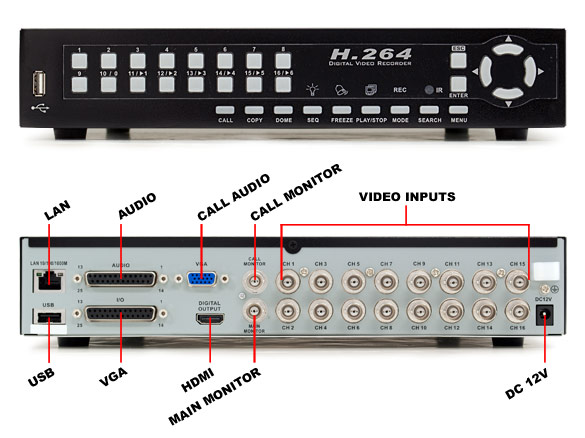

Additional Images:
