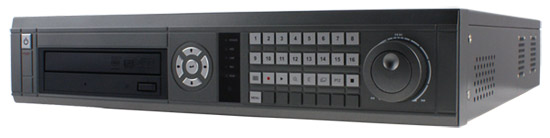

DDVRQIH8 - 8 Camera H.264 Premium Embedded DVR w/ DVD-RW backup

View live demo of DDVRQIH8 remote client.

DSC's newest realtime H.264 DVR features 8 video inputs, 8 audio inputs, full calander/time bar playback, and a full mouse graphical user interface, which makes this DVR the right choice for almost all security needs.

Special Offer!
For a limited time we are offering a 19in Widescreen VGA color monitor for only $79 with the purchase of this DVR. See Product Options above for this and other monitor choices. Please note that if you choose to return the DVR you must also return the monitor in order to receive a full refund.
Refer to our return policy for full return information.

Features:

• Video Inputs: 8 Cameras
• Video Input Signal: Composite 1.0 Vp-p 75 Ohms
• Video Outputs: Main monitor, VGA
• Full mouse GUI (Graphical User Interface)
• D1 Recording
• Time bar playback/Full calendar
• DVD Burner

Back to Top

Specifications:

• Camera Inputs: 8
• Image Compression: H.264
• Operating System: Embedded Linux
• Operation: Pentaplex (Record, Monitor, Search, Playback, and Network)
• Video Input: Composite 1.0 Vp-p 75 Ohms
• Video Output: Main monitor, VGA
• Call Monitor: 1 BNC
• Recording Resolution: 720x480, 720x240
• Audio Inputs: 8
• Audio Outputs: 1
• Hard Drive: 1 - 500 Gig drive included, 4 HD Maximum (up to 4 Terabyte)
• Display: 30 fps per channel (realtime)
• Recording Rate: 240 fps
• Recording Qualities: 8 Preset Levels
• Recording: Timer, Motion, Alarm, Manual individually set
• Search: fastx128, slow, forward, reverse, frame by frame
• Playback Speeds: 1X - 32X
• Alarm Inputs: 16 Inputs
• Alarm Outputs: 4 Relay Output (3a max)
• Pre-Alarm operation: Yes
• PTZ Control: RS485/RS422
• Archiving: USB 2.0, DVD-RW, Network
• Archive File Format: AVI, JPG, BMP
• Network: Ethernet 10/100M Auto, TCP/IP, DHCP, MNS server, DDNS server
• Remote Operation: Monitor, Playback, Recording, System Setup, Dome Camera Control, Archiving
• Dimensions (mm): 430(W) x 375(D) x 90(H)
• Dimensions (in): 16.9in(W) x 14.8in(D) x 3.5in(H)
• Unit Weight: Approx. 23 Lbs
• Operation Temperature: 0 ~ 60° C (32°F - 140°F)
• Relative Humidity: 10% - 90%
• Power Consumtion: Approx. 80W

Back to Top

Storage Capacity:

At the maximum frame rate (30 fps) this DVR will use approximately 5 to 7 gigabytes of hard drive space per camera, per day. Therefore, on a 500 gig hard drive with all 8 cameras hooked up you can store about 9 to 12 days of recorded video. The use of record time scheduling and motion detection can extend the recording capacity up to twice this amount. You may also tune down the record frame rate to increase your recording capacity (however this may affect video picture quality). Once the hard drive is full the unit will start recording over the oldest video.

You may upgrade the HDD storage on this machine up to 4000 gigabytes (4 terabyte).

Please keep in mind that actual storage capacity varies greatly based on many factors including the resolution and imaging chip size of each camera, the amount of motion in the field of view, and of course the selected DVR features and settings such as the frame rate, scheduling, and motion detection. Recording audio will also use up storage space (approx 1-2 gigs per audio input per day).

Be careful when comparing our storage capacity to other DVRs. Often times other manufacturers will claim that their DVR will allow you to store months of video. Be aware that they may be assuming that the frame rate is turned all the way down to one frame per second which is not a practical setting to use.

Back to Top

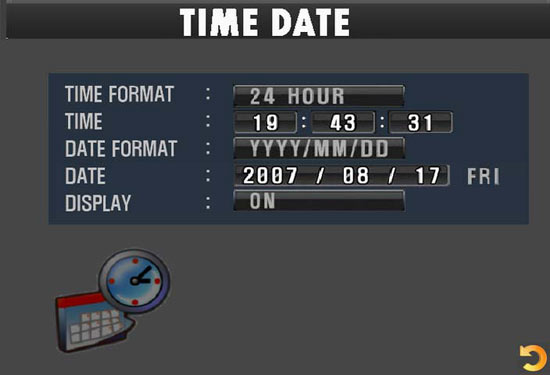

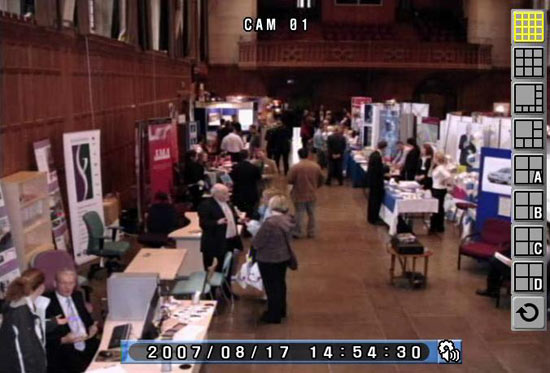

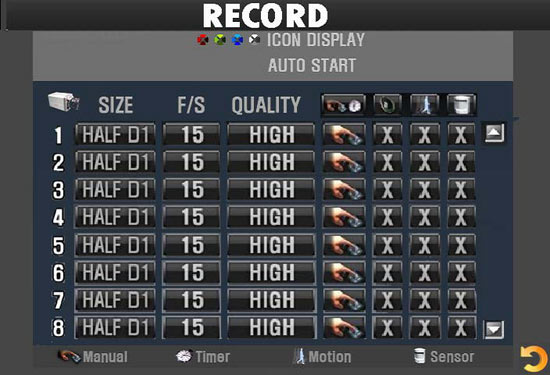

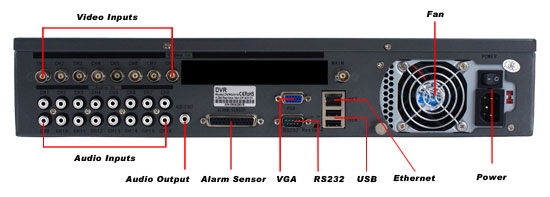

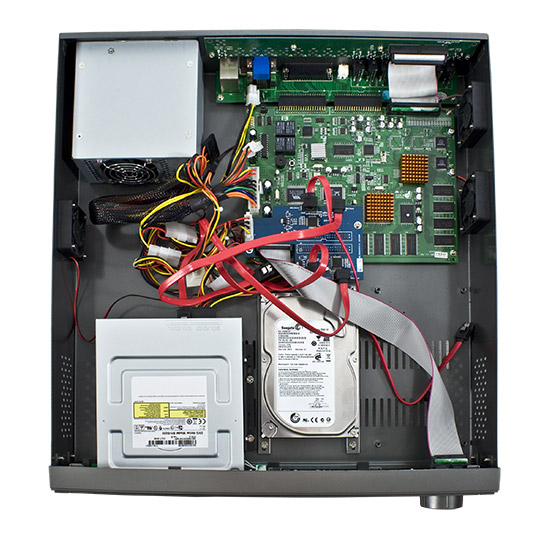

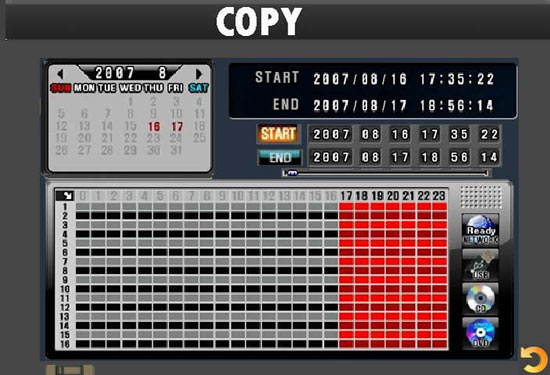

Additional Images:
