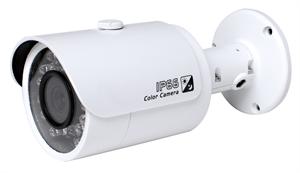

DHDCB10-36 - 1 Megapixel HD-over-Coax Bullet Camera

Your Price: $65.00
In Stock

Model Number: DHDCB10-36

Product Options

* denotes required field

Add power supply *
1 Megapixel 720P HD-CVI Bullet Camera
1 Megapixel 720P HD-CVI Bullet CameraConnections for HDCB10-36 1 Megapixel HD-over-Coax Camera

Overview

This 720P / 1 megapixel HD-over-Coax bullet camera has a 3.6mm lens and infrared for a maximum of 66ft. The HDCB10-36 is not Analog / HD switchable and is the perfect pair for either a 720P HD-over-Coax DVR or Tribrid DVR.

Features

  • 1/2.9" 1 Megapixel CMOS
  • 30 fps @ 720P
  • High speed, long distance real-time transmission
  • Day/Night (ICR), AWB, AGC, BLC
  • 3.6mm fixed lens
  • Max. IR LEDs length 66ft (20m), Smart IR
  • IP66, DC12V

Specifications

Image Sensor 1/2.9" 1 MegaPixel CMOS
Effective Picture (HxV) 1280 x 720
Electronic Shutter 1/60 ~ 1/100,000s
Video Frame Rate 1280 x 720 @ 30fps
Synchronization Internal
Min. Illumination 0.01 Lux @ F1.2 (0 Lux IR LED on)
Video Output 1-channel BNC HD-over-Coax high definition video output
Max. IR LEDs Length 66ft (20m), Smart IR
Day/Night Auto (ICR) / B&W / Color
Noise Reduction 2D
Focal Length 3.6mm
Angle of View H: 52.2º (103.4º/79.7º/39.9º)
Mount Type M12
Power Supply DC12V±10%
Power Consumption Max 3.5W
Working Environment -22°F ~ 140°F (-30°C ~ 60°C) / Less than 95% RH (no condensation)
Transmission Distance Over 1,640ft (500m) via 75-3 coaxial cable
Ingress Protection IP66
Dimensions (DxL) 2.6" x 6.1" (65mm x 154.7mm)
Weight 13.4oz (.38kg)
Bracket No
