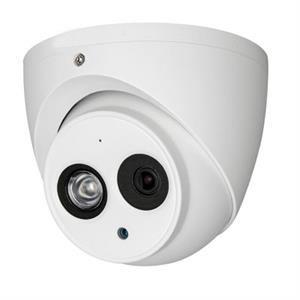

DHDCD21-36A - 2 MP / 1080P HD Armor Dome with Audio

Your Price: $79.00
In Stock

Model Number: DHDCD21-36A

Product Options

* denotes required field

Add power supply *
1080P HD Camera with built in Microphone
1080P HD Camera with built in Microphone1080P HD Camera with built in Microphone - Connections
Overview

Get true 2 megapixel 1080P digital resolution with this 3.6mm HD-over-Coax camera. This camera comes with a built in microphone that transmits audio over coax.


Features
  • 1/2.7" 2.0 Megapixel CMOS
  • 25/30fps @ 1080P
  • Built in Microphone - Audio over Coax
  • High speed, long distance real-time transmission
  • OSD Menu, Control over Coaxial Cable
  • Day/Night (ICR), AWB, AGC, BLC, 3D-DNR
  • 3.6mm fixed lens
  • Max. IR LEDs length 164ft (50m), Smart IR
  • IP67, DC12V

Specifications

Image Sensor 1/2.7" 2.1 MegaPixel CMOS
Effective Picture (HxV) 1930 x 1088
Electronic Shutter 1/30 ~ 1/100,000s
Video Frame Rate 25/30/50/60fps@720P; 25/30fps@1080P
Synchronization Internal
Min. Illumination 0.02 Lux
Video Output 1-channel BNC HD-over-Coax high definition video output
Max. IR LEDs Length 164ft (50m), Smart IR
Day/Night Auto (ICR) / B&W / Color
Noise Reduction 2D-DNR
OSD Menu Support
Focal Length 3.6mm
Angle of View H: 89.9°
Mount Type M12
Power Supply DC12V±10%
Power Consumption 4.5W
Working Environment -22°F ~ 140°F (-30°C ~ 60°C) / Less than 95% RH (no condensation)
Transmission Distance Over 984ft (300m) via 75-3 coaxial cable
Ingress Protection IP67
Dimensions (DxL) 3.7" x 4.17" (94mm x 106mm)
Weight Approx. 1 lbs (.45kg)
