DIP24 - 3 Mile Wireless Bridge

The IP24 is a high-power outdoor 250mW wireless bridge system. This system is perfect for applications that are spread out over a large area, for example a school or industrial facility with several out-buildings. The IP24 is like a virtual CAT5 cable allowing you to transmit the signal from an IP Camera or IP Video Server easily and securely to a switch or router up to 3 miles away with good line of sight (and from there into the camera recording device).

The IP24 operates in the 2.4GHz unlicensed frequency spectrum providing real world throughput up to 15 Mb/sec.

It supports multiple MAC addresses and DHCP across the wireless link. It is the perfect plug and play solution for remote video surveillanceconnecting the networks in two or more buildings, or remote network access. It complies with the 802.11b and g standards to insure interoperability. Multiple IP24 units can be connected in a mesh configuration to allow interconnecting more than two sites.

With its password verification, MAC address authentication, SSID suppression and advanced WPA encryption, the system provides the best available wireless data security.

Installation is a snap because of the plug and play features which have been built into the system. Just install the antennas and plug in the power supplies. The units will automatically find their peer and create a secure wireless network link. If changes to the pre-configured settings are desired, they can be easily done thru the built-in web interface from any point on either side of the network. There are no drivers or software that needs to be loaded to the computer.

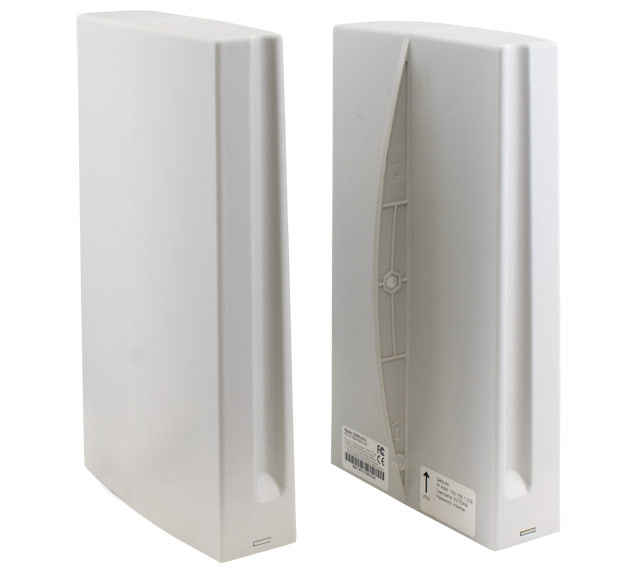

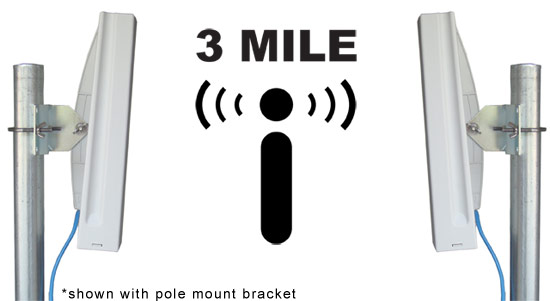

The IP24 comes complete with all the electronics that are needed for a point to point wireless network bridge installation; including 2 powerful 14dBi antennas with built-in 802.11bg high power electronics, bracket kits which accommodate pole or wall mounting, Cat5e rated POE (Power Over Ethernet) power inserters and 18VDC auto-ranging power supplies. Customer needs to supply CAT5 cabling between the power inserter and the antenna.

Features:

• Up to 3 miles operation and up to 15Mb/sec high speed performance
• True plug and play installation. Install and operational in a matter of minutes per side
• 5 point security including WPA encryption to insure best data security available
• Web based configuration tool, no drivers to install, can be managed remotely across the wireless interface
• Transparent network bridge passes DHCP and supports multiple MAC addresses

Specifications:

• Data Rates: 2.4 GHz 802.11g: 54/48/36/24/12/9/6 Mbps, 2.4 GHz 802.11b: 11/5.5/2/1 Mbps
• Antenna: 2.4 GHz 14dBi Panel Antenna, 35deg AZ and 25deg EL Beamwidth, >20dB front to back
• Interface: 10/100Mbps RJ-45 LAN Port
• IP Auto Configuration: DHCP Client
• Security: MAC Address Filtering, WEP/WPA encryption, Hide SSID in beacons, Layer 2 isolation
• Management Configuration: Web-based configuration (HTTP), Console configuration (SSH), SNMP Protocol
• Firmware Upgrade: Upgrade firmware wia web browser
• Regulatory Certifications: FCC Part 15 / UL
• Operating Channels: 11 for North America
• RF Frequency Band: 2400 ~ 2497 MHz
• Receive Sensitivity (Typical): 802.11g: -73 +2dBm @ 54Mbps, 802.11b: -84 +2dBm @ 11Mbps
• Available Transmit Power: 802.11g: 50, 100mW / 802.11b: 100, 150, 200, 250mW
• Antenna Physical Dimensions: 314mm x 187mm x 65mm (L x W x D), 12.4'' x 7.3'' x 2.5'' (L x W x D)
• Complete System Weight: 3 kg (7 lbs)
• Temperature Range (operating): -30°C to 50°C (-22°F to 122°F)
• Temperature Range (storage): -40°C to 70°C (-40°F to 158°F)
• Power Requirements: Power Supply - 100-240V AC 50/60Hz, Bridge - 18V DC/0.8A
