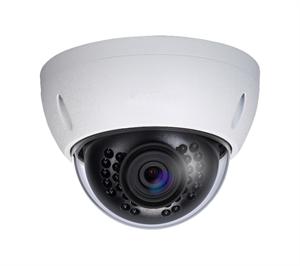

DIP2MADW-28 - 2 Megapixel Wireless Armor Dome Network Camera

Your Price: $149.00
In Stock

Model Number: DIP2MADW-28

Product Options

* denotes required field

Add power supply *
Wireless 2 Megapixel Network Armor Dome Camera
Wireless 2 Megapixel Network Armor Dome Camera3 Axis Gimbal for Wireless Armor Dome Network CameraNetwork & PoE connection for Wireless Armor Dome Camera

Overview

Expand your IP Network security system with this 2 megapixel resolution wireless network camera. With a 2.8mm lens and a 3 megapixel CMOS chip, images will be crystal clear. Connect to your network via wireless accessories such as the DAP24 and DAP24-OMNI.

Features

  • 1/3” 3 Megapixel progressive CMOS
  • H.264 &MJPEG dual-stream encoding
  • 25/30fps @1080P (1920×1080)
  • DWDR, Day/Night(ICR), AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens
  • Max. IR LEDs Length 30m / 98 ft
  • Wi-Fi Support
  • IP66, IK10, PoE
Access from anywhere with mobile apps

Specifications

Image Sensor 1/3" 3 MegaPixel CMOS
Effective Pixels (H×V) 2048 × 1536
Scanning System Progressive
Electronic Shutter Auto / Manual, 1/3(4) ~ 1/10000s
Min. Illumination 0. 1 Lux @ F1.8 (Color), 0Lux @ F1.8 (IR on)
S/N Ratio >50db
Max. IR LEDs Length 98 ft (30m)
White Balance Auto / Manual
Gain Control Auto / Manual
Day / Night Auto (ICR) / Color / B&W
Wide Dynamic Range DWDR
Backlight Compensation BLC / HLC
Noise Reduction 2D
Privacy Masking Up to 4 areas
Focal Length 2.8mm
Focus Control Manual
Angle of View H: 90°
Lens Type Fixed Lens
Mount Type Board-in Type
Resolution 1080P (1920 × 1080) / 720P (1280 × 720) / D1 (70 4× 576 / 704 × 480) / CIF (352 × 288 / 352 × 240)
Frame Rate Main Stream: 1080P / 720P (1 ~ 25/30 fps), Sub Stream: D1/CIF (1~25/30 fps)
Video Compression H.264
Bit Rate (Video / Audio) 16K ~ 8192 Kbps / NA
Ethernet 1 x RJ45 Ethernet port (10/100Base-T)
Wi-Fi 802.11b/g/n
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, CGI
Max User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Power Supply DC 12V
Power Consumption PoE (802.3af)
Waterproof Rating IP66
Vandalproof Rating IK10
Working Environment -22° ~ 122° F (-30°~ 50° C), Less than 95% RH
Dimensions (D×H) 4.33" × 3.2" (10 81mm)
Weight Approx 1 lb (0.39kg)
Warranty 1 Year
