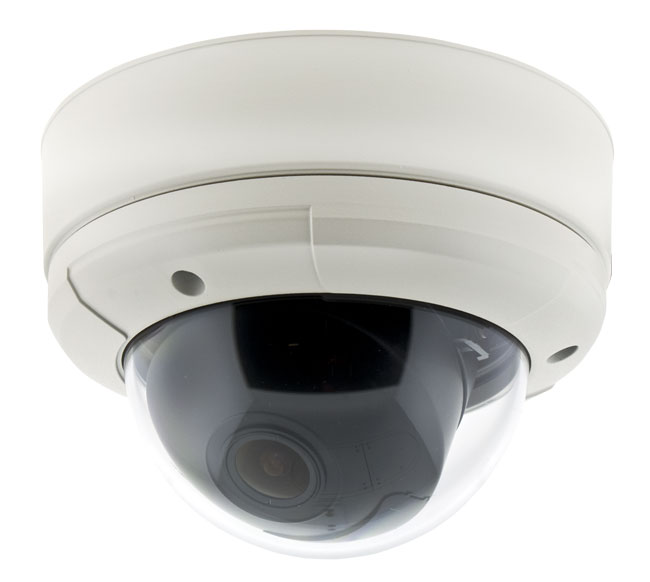

DKCAD550V - HiRes Varifocal Armor Dome Camera

Top of the line 550 resolution, 3-axis varifocal armor dome with a versatile 2.8-11mm lens. Also includes conduit side connection and installers video pigtail for quick focus adjusting without disconnecting from video wirerun.

Features

• 1/3” Sony Super HAD HQ1 CCD
• High Resolution
• Auto Iris Lens
• 3-Axis
• 2.8 - 11mm zoom
• Vandal Resistant
• May be used indoors or outdoors

Specifications

• Image Sensor: 1/3" Sony Super HAD HQ1 CCD
• Total Pixels: 811(H) x 508(V)
• Effective Pixels: 768(H) x 494(V)
• Resolution: More than 550 lines
• Backlight Compensation: BLC / HLC / Off Selectable
• S/N Ratio: More than 48dB
• Gain Control: ON / OFF
• White Balance: ATW
• Electronic Shutter: 1/60~1/120,000 (NTSC)
• Lens: DC Auto Iris Lens
• Operating Temperature/Humidity: -10°C to 50°C / 30-80% RH
• Dimensions: Millimeters - 145(W) X 100(D) / Inches - 5.7(W) x 3.9(D)
• Weight: Appx. 600g (1.3 lbs)
• Power Supply: 12V DC (not included)
• Power Consumption: 12V DC, 160mA / AC 24V, 100mA
