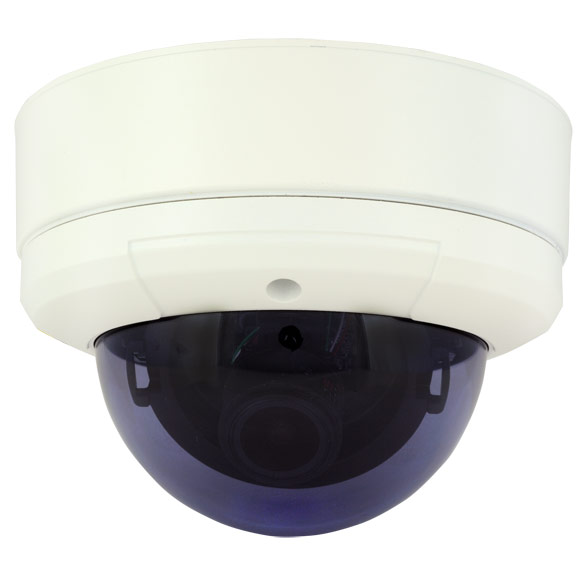

DKCAD602V - High Resolution Varifocal Armor Dome Camera
|
In Stock
Model Number: DKCAD602V
Product Options
* denotes required field
Add cable and connectors*
Add power supply *
Add a wall mount bracket*
|
|
Features:
- 600 Lines Resolution
- 2.8 ~ 11mm Varifocal Lens
- OSD (On Screen Display)
- D-WDR (Wide Dynamic Range)
- 2D-DNR (Digital Noise Reduction)
- 3 Axis Gimbal Bracket
- Wall or Ceiling Mount
- Easy Zoom & Focus Adjustment
- Weatherproof (IP66)
- Vandal Resistant (Polycarbonate Dome)
- Dual Voltage
| DKCAD602V Specifications |
| Image Sensor |
1/3" Sony Super HAD II CCD |
| Resolution |
630 lines |
| Video Output |
1.0Vp-p, 75 Ohm |
| Total Pixels (H*V) |
811 x 508 |
| Effective Pixels (H*V) |
768 x 494 |
| Lens |
2.8~11mm Varifocal (DC Auto Iris) |
| Minimum Illumination |
0.01 Lux |
| S/N Ratio |
> 52db (AGC Off) |
| Auto Gain Control |
OFF / LOW / MIDDLE / HIGH |
| White Balance |
ATW1 / ATW2 / MANUAL |
| Electronic Shutter |
1/60s~1/100,000s (NTSC) |
| Back Light Compensation |
OFF / BLC / HLC Selectable |
| 3D-DNR |
ON / OFF Selectable |
| D&N Selection |
AUTO / COLOR / BW / EXT |
| D-WDR |
ON / OFF Selectable (level adjustable 0~35) |
| Dead Pixel (DPC) |
OFF / Auto (Max 64 pts) |
| IR Smart |
ON / OFF Selectable (IR gain level adjustable 0~255) |
| Motion Detection |
OFF / ON (4 areas selectable) |
| Privacy Masking |
OFF / ON (8 areas selectable) |
| Lens Shading (LSC) |
ON / OFF Selectable (level adjustable 0~255) |
| Sharpness |
ON / OFF Selectable (level adjustable 0~30) |
| OSD |
Built-in |
| Weatherproof Rating |
IP66 |
| Mount |
Wall or Ceiling |
| Operating Temperature |
14°F to 122°F / -10°C to 50°C |
| Relative Humidity |
0~80% |
| Dimensions (Diam*H) |
5.7'' x 3.9'' / 145mm x 100mm |
| Weight |
Appx. 1.3 lbs (600g) |
| Power (power supply not included) |
DC 12V, DC 12V, 110mA / AC 24V, 60mA |
