DKCC560S - High Resolution Wide Dynamic Range C/CS Mount Camera

Our wide dynamic range, super low lux, full on screen display and 12VDC/24VAC CS-mount camera offers excellent resolution and very low Lux for an unbeatable combination.

Convert your screw down terminal to 2.1mm male to fit your power supply or plug and play cable with the PWRADT-0.

Notes:

• The lens and bracket are selected separately (see above).
• If you want to use this camera outdoors you need to put it in an outdoor housing. Keep in mind that the housings are not small, they are over a foot long. They look fine in an industrial or business application but may be inappropriate for some residential applications.
• For more info on calculating field of view, check out our lens calculator tool.

Features:

• 1/3” Sony Super HAD CCD
• 560 Lines Resolution
• 0.0002 Lux (sensitivity high)
• C/CS Mount Lens
• Very Low Light Sensitivity (lux)
• On Screen Display (OSD)
• Digital Noise Reduction (DNR)
• Wide Dynamic Range (WDR)

Specifications:

• Image Sensor: 1/3” Sony Super HAD CCD
• Min. Illumination: 0.0002 Lux (sensitivity high)
• Total Pixels: 811(H) x 508(V)
• Effective Pixels: 768(H) x 494(V)
• Resolution: More than 560 lines
• Backlight Compensation: BLC / HLC / Off Selectable
• S/N Ratio: 52dB (AGC OFF, Weight ON)
• Sense-up: AUTO / FIXED / OFF (selectable Limit x2 ~ x256)
• Gain Control: LOW / HIGH / OFF selectable
• White Balance: ATW / AWC / Manual / Outdoor (1,800K~10,500K) / Indoor (4500K~8500K)
• Electronic Shutter: 1/60~1/120,000 (NTSC)
• DNR: OFF / ON (1~32 Level Adjustable)
• Mirror: ON / OFF
• Lens Mount: C Mount or CS Mount selectable
• Operating Temperature/Humidity: -10°C to 50°C / 30-80% RH
• Dimensions: Millimeters - 64(W) X 56(H) X 124(D) / Inches - 2.5(W) x 2.2(H) x 4.9(D)
• Weight: Appx. 320g (0.705 lb
• Power Supply: 12V DC, 160mA / 24V AC, 100mA (not included)

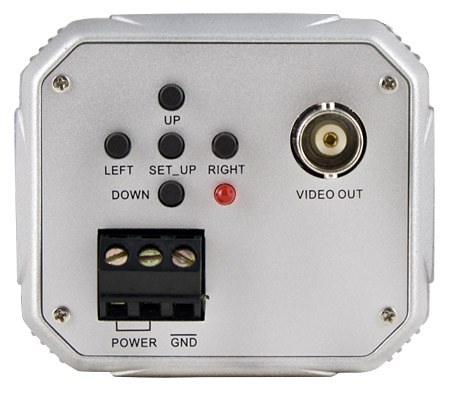

Additional Images:
