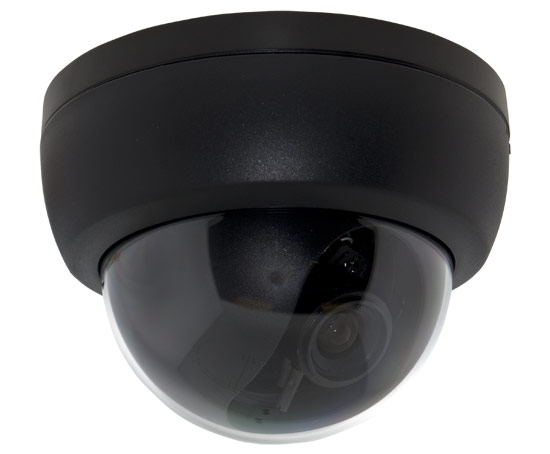

DKCD560V - Color Varifocal Wide Dynamic Range Dome Camera

A super low lux (0.0002) CCD, wide dynamic range, high resolution 560 line 3 axis dome camera with 4-9mm varifocal lens with an OSD menu.

Features

• 1/3" Sony Super HAD CCD
• 560 TV Lines
• 0.0002 Lux
• 4~9mm Varifocal lens
• Wide Dynamic Range (WDR)
• On-Screen Display (OSD)
• Digital Noise Reduction (DNR)
• Digital Shutter Speed (DSS)
• Installer video out
• 3 Axis Bracket
• Indoor Use only

Specifications

• Image Sensor: 1/3" Sony DS CCD
• Min. Illumination: 0.0002 Lux (sensitivity high)
• Total Pixels: 811(H) x 508(V)
• Effective Pixels: 768(H) x 494(V)
• Resolution: More than 560 lines
• Backlight Compensation: BLC / HLC / Off Selectable
• S/N Ratio: 52dB (AGC OFF, Weight ON)
• Sense-up: AUTO / FIXED / OFF (selectable Limit x2 ~ x256)
• Gain Control: LOW / HIGH / OFF selectable
• White Balance: ATW / AWC / Manual / Outdoor (1,800K~10,500K) / Indoor (4500K~8500K)
• Electronic Shutter: 1/60~1/120,000 (NTSC)
• DNR: OFF / ON (1~32 Level Adjustable)
• Mirror: ON / OFF
• Lens: 4~9mm DC Auto Iris Lens
• Operating Temperature/Humidity: -10°C to 50°C / 30-90% RH
• Dimensions:
  Millimeters - 135(W) X 97(D)
  Inches - 5.3(W) x 3.8(D)
• Weight: Appx. 280g (0.62 lb)
• Power Consumption: DC 12V 160mA
• Power Supply: DC 12V (not included)

Additional Images
