DKR520KIT - 520 Line C-Mount Camera Kit

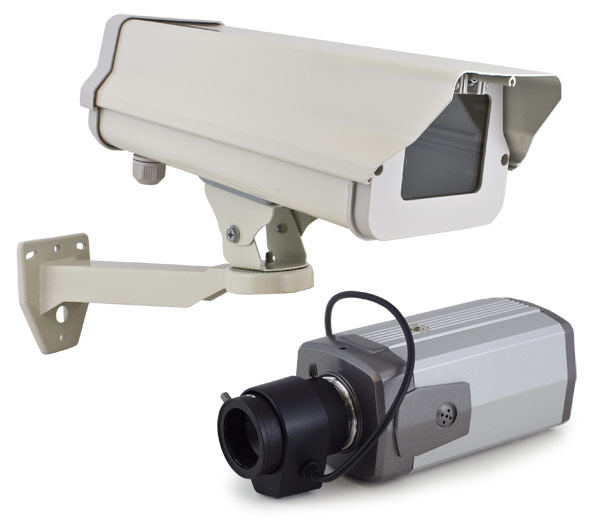

This kit includes everything you need to install the high resolution day / night c-mount color camera outdoors - including the camera, lens, outdoor housing, and bracket for installation. Excellent choice for a DVR!

For more info on calculating field of view, check out our lens calculator tool.

Audio may not work properly if installed inside a camera housing.

Features:

• 520 Lines Resolution
• 1/3" CCD Image Sensor
• Built-In Audio

Camera Specifications:

• Image Sensor: 1/3" Sony CCD
• Resolution: 520 TV lines
• Sensitivity: 0.5 lux
• Audio: Yes
• Iris Control: Auto
• DC/Video Drive Lens: supported
• Mount Type: C mount or CS Mount (adjustable)
• Compensation: BLC, AE, AWE Control
• Connection Type: BNC
• Dimensions(mm): 132(L) x 62(W) x 56(H)
• Power Supply: 12V DC (not included)

Housing Specifications:

• Dimensions: 330mm(diameter) x 100mm(width) x 120mm(height) (From Peak = 385mm)
• Max Camera Size: 160mm(diameter) x 85mm(width) x 70mm(height)
• Window Area: 67mm x 57mm
• Plate Glass Weight: 2850 grams

Additional Images:
