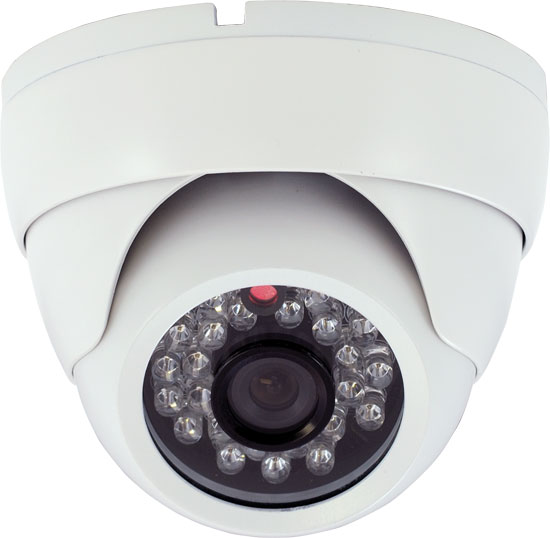

DME540DW - Color Outdoor 540 Line Infrared Armor Dome Camera

Click to watch Video Overview of DME540D Camera.

The above video states that there are 36 infrared LEDs on this camera, however the product has since been upgraded to 20 super high-intensity blue LEDS providing an ever brighter night-time image.

Due to amperage required, you should not install with plug and play cable, use RG59 instead. Feel free to call us for more info.

For more info on calculating field of view, check out our lens calculator tool.

Features:

• 1/3 inch Sony Super HAD CCD Sensor
• 540 TV Lines
• 3.6mm Lens
• 20 High-Intensity Blue Infrared LEDs
• 45ft. IR view distance
• Metal Armor Dome Housing
• May be used indoors or outdoors
• Ceiling or wall mount
• 3 Axis

Specifications:

• TV System: NTSC
• Image Sensor: 1/3-inch Sony Super HAD CCD sensor
• Resolution: 540 lines
• Lens: 3.6mm
• Video Output: 1.0 Vp-p 75 Ohms
• Min. Illumination: 0 lux with IR On
• Shutter Speed: 1/50~1/12,000 sec.
• White balance: Auto
• Gamma correction: > 0.45
• S/N Ratio: Over 50dB at AGC Off
• Recommended Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
• Dimensions: 94mm (diameter) X 70mm (height) [3.7in (D) X 2.7in (H)]
• Power Supply: 12V DC (not included)
• Power Consumption: 500mA
