DVR2400E - Elite 24 Camera Pentaplex H.264 DVR with DVD-RW Backup

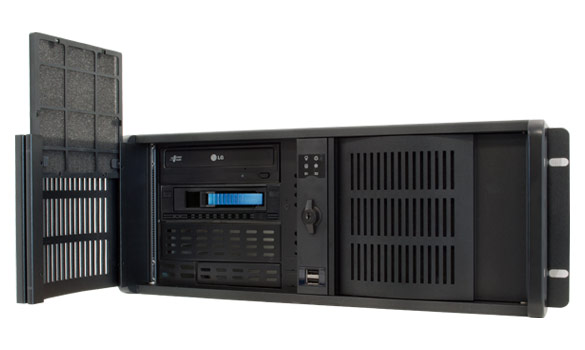

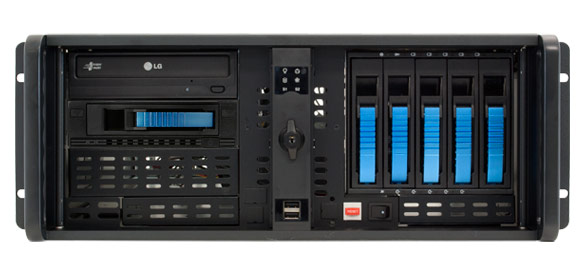

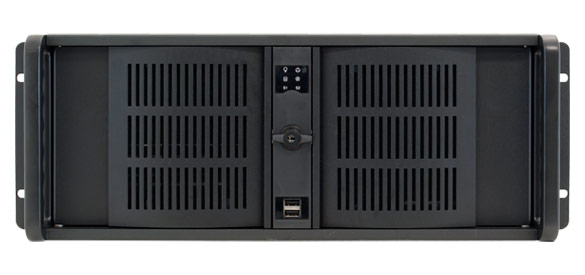

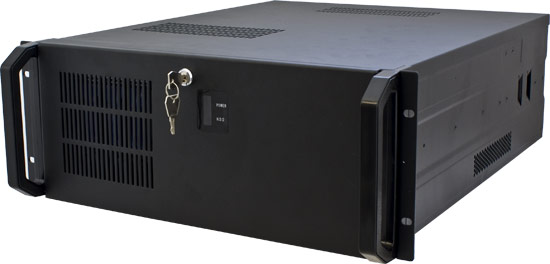

The VR Elite Series DVR is truly top of the line. The VR Elite offers all of the features of the VR Series and adds more support for high capacity and hybrid applications, and scalability. All VR Elite DVR’s come standard with an isolated hard drive for the operating system (OS) and 1 terabyte of storage for video. You can add 5 more removable hard drives slots and more if necessary (up to 36 terabytes) for easy expansion and maintenance. The DVR case is upgraded to handle more capacity with enhanced cooling. This is the DVR for those customers who want or need the very best in capacity, ease of maintenance, and scalability.

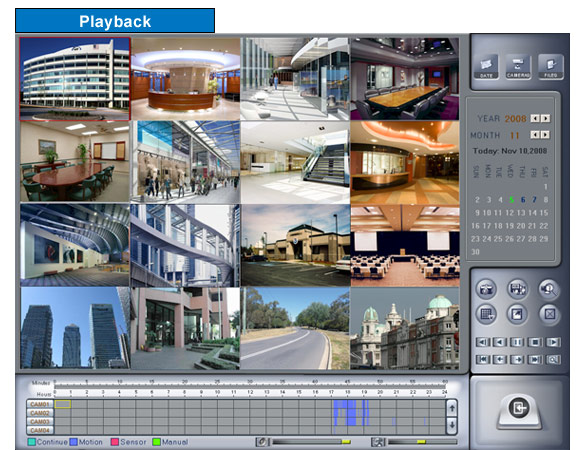

When playing back recorded video on the DVR you may view up to 16 cameras at once (16-part partition). However, when playing back remotely using the client software or the web browser you may view up to 4 cameras at a time (4-part partition). You may view any of the available cameras but only 4 at a time.

Product Includes:

• 24 channel PC based DVR
• 1 terabyte HDD (upgradable to 36 terabytes)
• Windows 7 (32 bit)
• DVD±RW Optical Drive
• Keyboard and mouse

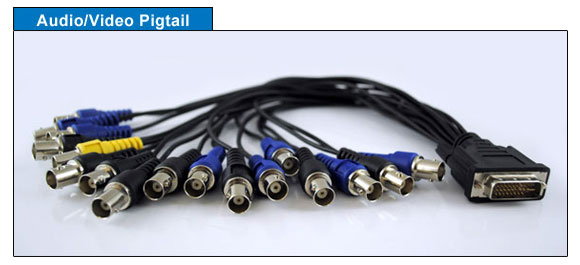

• Video and audio pigtails
• Digital copy of user's manual
• Power cord

Features:

• Real-time recording and playback
• Full audio every channel
• Hybrid IP Support
• Up to 36 terabytes of storage
• Isolated operating system

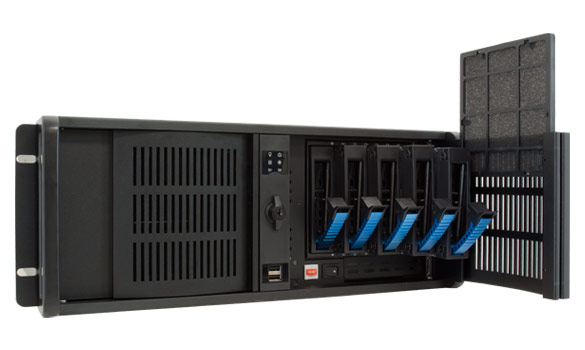

• Removable HDD bays for easy maintenance

back to top

Storage Capacity:

At the maximum frame rate (30 fps) this DVR will use approximately 5 to 7 gigabytes of hard drive space per camera, per day. Therefore, on a 500 gig hard drive with all 24 cameras hooked up you can store about 3 to 4 days of recorded video. A terabyte of storage would hold approximately 6 to 8 days of recorded video. The use of record time scheduling and motion detection can extend the recording capacity up to twice this amount. You may also tune down the record frame rate to increase your recording capacity (however this may affect video picture quality). Once the hard drive is full the unit will start recording over the oldest video.

You may upgrade the HDD storage on this machine up to 6000 gigabytes (6 terabytes).

Please keep in mind that actual storage capacity varies greatly based on many factors including the resolution and imaging chip size of each camera, the amount of motion in the field of view, and of course the selected DVR features and settings such as the frame rate, scheduling, and motion detection. Recording audio will also use up storage space (approx 1-2 gigs per audio input per day).

Be careful when comparing our storage capacity to other DVRs. Often times other manufacturers will claim that their DVR will allow you to store months of video. Be aware that they may be assuming that the frame rate is turned all the way down to one frame per second which is not a practical setting to use.

Note: The storage capacity using H.264 (aka MPEG4+) video compression is similar to MPEG4. However the big improvement of this newer technology is in its image quality, especially at higher resolutions such as full D1. In plain terms this means that you may use slightly more hard drive space for H.264 but when playing back recorded video you will notice a clearer picture especially when viewing full screen.
