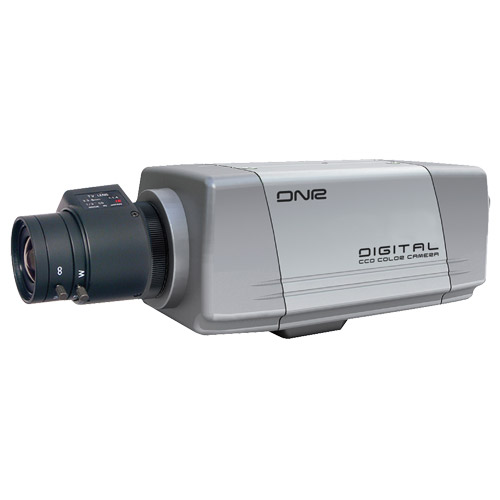

DCM540 - Hi-Res Wide Dynamic Range C-Mount Camera with Pixim DSP

This super high-resolution Wide Dynamic Range (WDR) c-mount camera offers the new Pixim DSP chipset to provide the best possible picture. The On Screen Menu Display (OSD) provides convenient access to camera options.

Pixim’s Digital Pixel System (DSP) technology revolutionizes the way video cameras capture and process images. Unlike traditional cameras, where each pixel cannot adjust to highlights and lowlights in the same scene, Pixim’s patented Digital Pixel System technology empowers hundreds of thousands of pixels to act like constantly self-adjusting individual cameras. This all-digital system enables Pixim-powered cameras to efficiently capture the whole picture, regardless of lighting condition or application – thus securing the highest resolution, natural color and clarity, while automatically eliminating image-compromising visual noise (e.g., glare, reflections). The result is a more than superb image quality.

Due to amperage required, you should not install with plug and play cable, use RG59 instead. Feel free to call for more info.

Specifications:

• Image Sensor: 1/3" Pixim DSP
• Resolution: 540 TV lines
• Min Illumination: 0.08 Lux
• Pixels: 720(H) x 540(V)
• Signal to Noise Ratio: Greater than 50db
• White Balance: Auto
• Mount Type: C mount or CS Mount (adjustable)
• Connection Type BNC
• Operating Temp: -10°C ~ 50°C (14°F ~ 122°F)
• Power Supply: DC 12V (not included)
