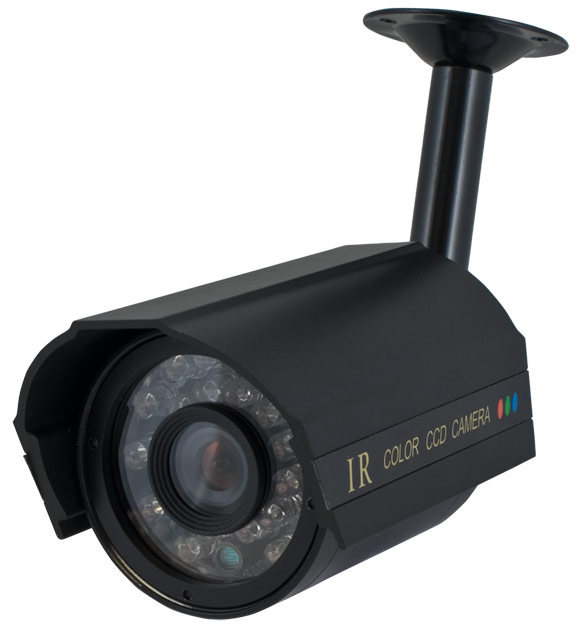

DCL520 - High Performance IR Color CCD Camera
|
In Stock
Model Number: DCL520
Product Options
* denotes required field
Add Cable and Connectors*
Add Power Supply
|
|
Features:
- 520 lines horizontal resolution
- 40 ft. IR Distance
- Power supply DC 12V (not included)
- Weatherproof housing for outdoor use
- Ceiling or wall mount
- Adjustable bracket included
Specifications:
- Image Sensor: 1/3-inch Sony Super HAD CCD image sensor
- Image Size: 768 x 494 NTSC
- Scanning System: 2:1
- Scanning Freq: 15734 KHz
- Shutter Speed: 1/60 ~ 1/100,000
- Sync System: Internal
- Resolution: 520 TV Lines
- Video Output VBS 1.0V p-p Composite (75 ohms)
- S/N Ratio: More than 48dB
- Min Illumination: 0 Lux
- Lens: 3.6mm (Fixed)
- White Balance: Auto
- Operation Temperature -10°to 50°C
- Dimension: 50mm(W) x 50mm(H) x 67mm(D)
- Weight: Approx 400g
- Power: 12VDC 400ma max (not included)
- If you need a power supply to manage multiple cameras click here.
|
Product Reviews
| (2 Ratings, 2 Reviews) |
Average Rating:
|
Mr
Stephen Scott
(Coral Gables Fl)
8/25/2009 7:06 PM
great value for money, good, constant performer
|
CL480 vs HR49
John Bowen
(Falmouth, MA)
10/24/2008 6:24 PM
Excellant during the day with very good resolution. If you need a money shot at night i.e. driveway, get the HR49 it's worth the extra $$$.
|
|
|
|
