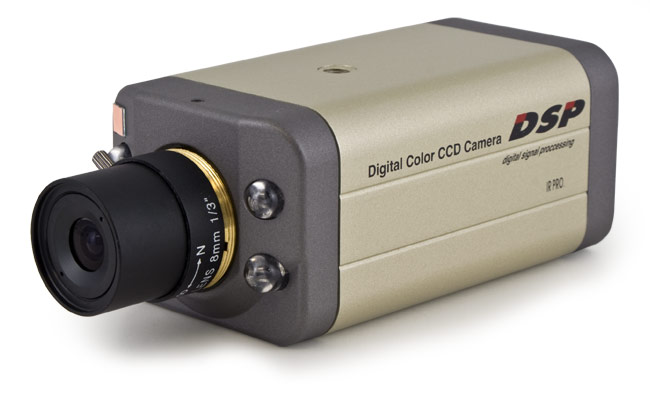

DEXVIEW-IR - Infrared Day / Night 580 Line C-Mount Camera

This color camera has excellent resolution and with a .05 lux SONY imaging chip you have one of the best cameras on the market! The 4 infrared high output LEDs mounted on the front allows you to see up to 45 ft. with no light! Excellent choice for a DVR!

Due to amperage required, you should not install with plug and play cable, use RG59 instead. Feel free to call for more info.

Convert your screw down terminal to 2.1mm male to fit your power supply or plug and play cable with the PWRADT-0.

Notes:

• The lens and bracket are selected separately (see above). The infrared LEDs on this camera will reach 45 ft, however you still need to choose the best lens for the distance and angle of view that you desire.
• If you want to use this camera outdoors you need to put it in an outdoor housing. Keep in mind that the housings are not small, they are over a foot long. They look fine in an industrial or business application but some homeowners do not care for the look of the large housing on their home exterior.
• When putting an infrared camera in a housing be sure to put the camera lens flush up to the glass of the housing. This will reduce any glare from the infrared leds off the glass.
• For more info on calculating field of view, check out our lens calculator tool.

Features:

• 1/3" Sony Super HAD EXVIEW CCD
• Day/Night CCD
• 580 lines resolution
• 4 Long range IR LED (45FT)
• Video-Drive Lens & DC-Drive Lens supported
• C or CS mount adjustable
• Auto Gain Control
• BNC Connection
• Comes with 12V DC Power Supply

Specifications:

• 1/3” Super HAD exview CCD
• 0.01 lux at F/1.2
• 580 TV lines
• White Balance: ATW/AWB switchable
• Auto Gain Control: AGC ON/OFF switchable
• S/N Ratio: 52dB (MIN) / 60dB (TYP)(AGC OFF)
• IR LED 4 units 840nM IR LED, 120mA
• Electronic Shutter: 1/60-1/120,000sec.
• Auto Iris: Video/DC/A.E.S.
• B.L.C. Function ON/OFF switchable
• Mirror Function ON/OFF switchable
• 2X Digital Zoom ON/OFF switchable
• Video Output: 1.0 Vp-p at 75 ohm composite,
• Gamma Correction: 0.45
• Operating Temperature: -20c to +50c
• Lens Mount: CS mount
• (C mount capable with adaptor)
• Dimensions: 2.28(W) X 2.05(H) X 3.86(D) inches
• Dimensions: 58(W) X 52(H) X 98(D) mm
• Weight: 350g (0.77 lb)
• Power Source: 12V DC, 150mA (not included)
• 24V AC Power supply compatible
