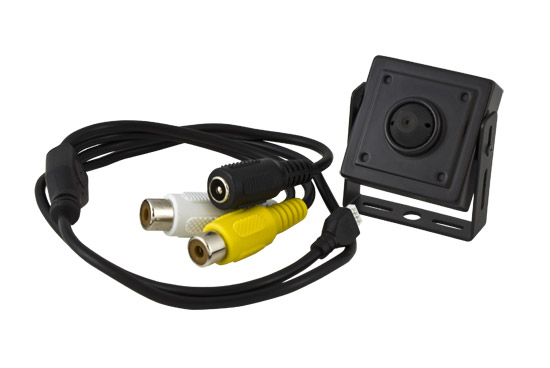

DCLPIN - Mini color pinhole camera

This color pinhole camera is perfect for the most covert situations. It is about the size of a half dollar and has leads for easy connection to your TV or VCR.

Features:

• Board lens or pinhole lens are adoptable
• Mini metal casting

Specifications:

• TV System: NTSC
• Image Sensor: 1/4 inch Sharp Color CCD
• Lens: 3.7mm
• Pixels: 510(H) x 492(V)
• Scanning System: 525 Lines
• Sync System: Internal Synchronization
• Resolution: 420 TV Lines
• Illumination: 1.5 Lux
• S/N Ratio: 48dB
• Video output: 1Vp-p 75 Ohms
• Electronic Shutter: 1/60~1/100,000Sec
• Operation Temp: -14°F ~ 122°F (-10°C ~ 50°C)
• Dimension: 35mm(W) x 35mm(D) x 15mm(H)
• Power Supply: 12VDC (not included)

Additional Images:
