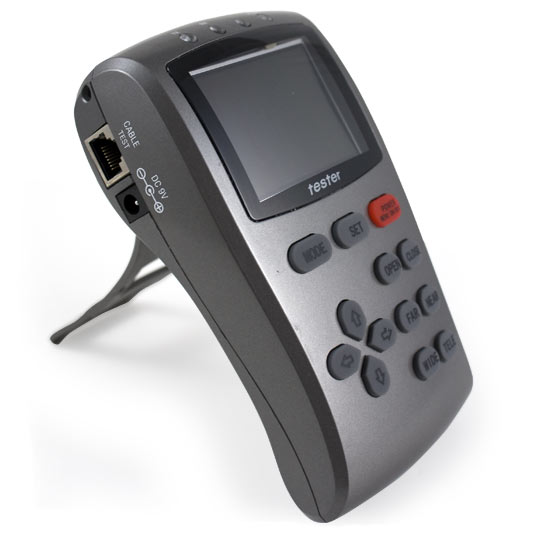

PTZMON - Portable 2.5'' LCD Monitor

Features:

• Portable, 2.5'' LCD monitor (video input/output)
• NTSC/PAL adaptive
• Support multi-protocol and baud rate
• Call or store preset freely, position accurately
• Supports presets' special usage
• Save electricity mode (0-30 seconds selectable)

Specifications:

• Video Signal: NTSC/PAL (auto adaption)
• Video Output Move: 1.0Vp-p
• Battery: Li battery rechargable DC3.6V (1400mA)
• P/T Control Protocol: Pelco-D, Pelco-P, Samsung, Beieot, A01, B01, Sanglin, Liling
• Baud Rate: 2400, 4800bps, 9600bps, 19200bps
• Date Transmission: RS232/RS485
• Buzzer: ON/OFF
• Inner Fuse: 3A
• Operating Temperature: -20°C~60°C
• Weight: 350g (0.77 lbs)

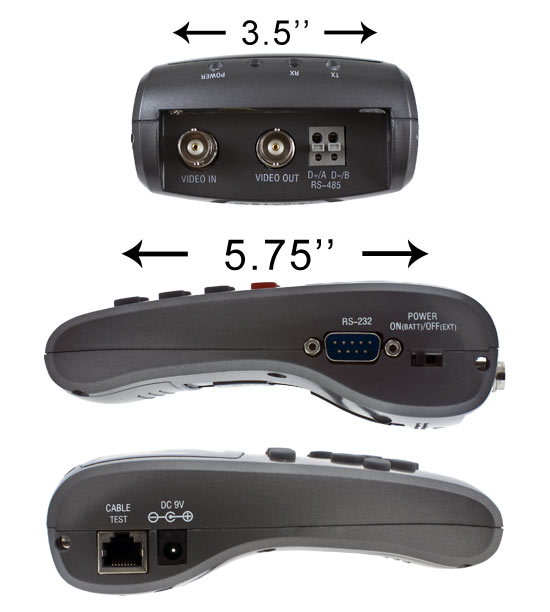

• Dimensions: 5.75in x 3.5in x 1.5in

Additional Images:
