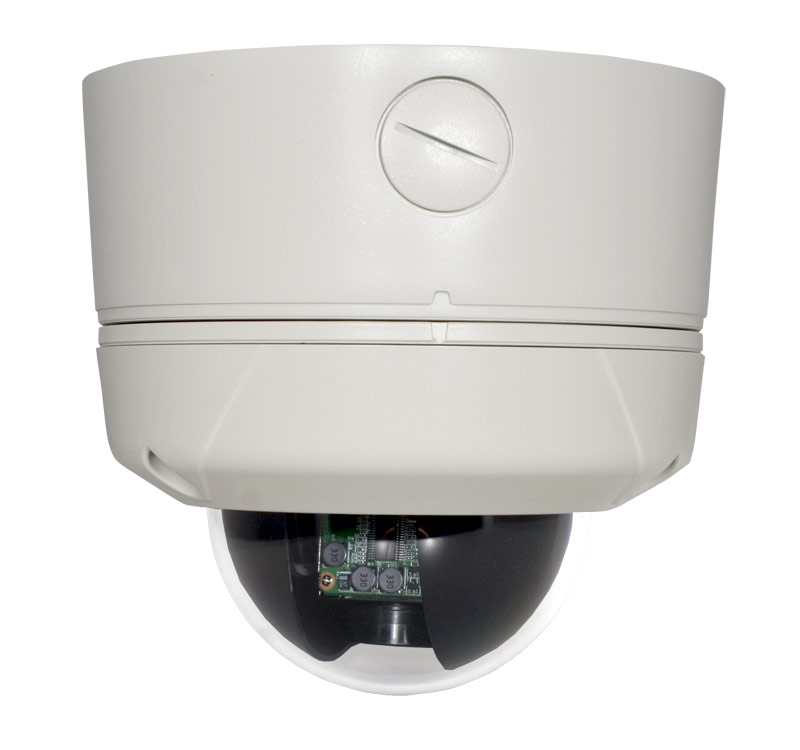

DVPTZ - Vandal Proof Mini Speed Dome Camera

We now offer this awesome high quality vandal proof color mini speed dome. This unit is about half the size of a conventional speed dome so it looks great indoors or out. On the ceiling it can be mounted flush or recessed into the ceiling. It has an optional wall bracket to allow wall mount. This unit will pan, tilt, or zoom up to 100X (total zoom = optical zoom X digital zoom). Great choice with the Optiview DVRs.

To use a PTZ camera on our PC-Based DVRs, you must have an RS485 Converter.

Product Includes:

• Ceiling bracket
• Installation / Instruction Manual
• Free Technical Support

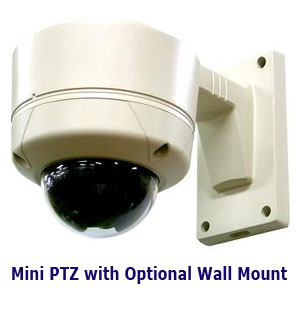

• Wall bracket is optional
• Power Supply

Features:

• 10X Digital Zoom
• 10X Optical Zoom
• Vandal Proof Dome
• Indoor / Outdoor
• Day / Night
• 360 Continuous Pan
• Small Footprint

Specifications:

• 1/4" Super HAD SONY CCD
• 500 TV Lines Horizontal Resolution
• Pixels: 768 x 494
• Min. Illumination: 0.7 Lux (Day/Color), 0.02 Lux (Night/B&W)
• SN Ratio: > 50db
• Dome: Die-cast Anti-vandal Dome Cover
• Dimensions: 158.8(D) X 163mm(H)
• Weight: 1.5 KGS (about 3.5 lbs)
• Interface: RS485 ( Pelco-D)
• Focus: Auto
• Iris: Auto
• White Balance: Auto/Manual
• BLC: On/Off
• Flickerless: On/Off
• Auto Flip: On/Off
• Lens: 10X Optical Zoom, 3.8~38mm
• 10X Digital Zoom
• Motor Type: Stepper Motor
• Micro Steps: 1/4 Step
• Presets: 165 preset positions
• Group Tour: 8 programmable group tours (each one consisting of up to 60 preset steps)
• Privacy Zone: 4 Privacy zones
• Password Protection: Yes
• Alarm Input: 4 alarms OFF/NC/NO (with various programmable states)
• Alarm Actions: Activate preset, Group scanning or Patterns
• Pan Angle: 360 degrees continuous pan rotation
• Pan Speed: 150 degrees /s manual, 200 degrees /s presets
• Operating Temperature without heater: 0C ~ 50C
• Power Consumption: 9W Max
• Power Supply: 12V DC 750ma (included)
