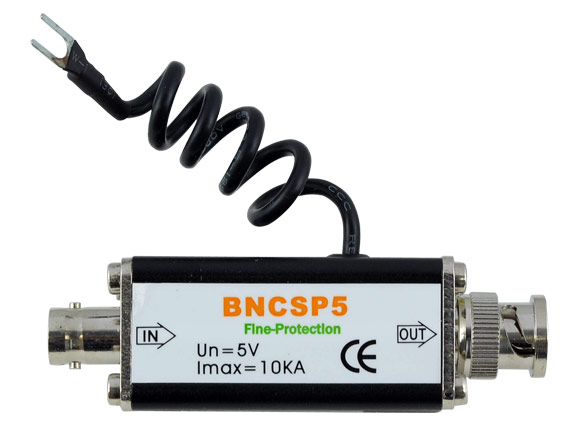

BNCSP5K - Video Lightning Surge Protector

ratingratingratingratingrating
Your Price: $35.00
In Stock

Model Number: BNCSP5K

Protects your CCTV equipment from lightning and other power surges by sending any power surge to ground (rather than proceeding down the wire and damaging any further equipment).

Specifications:

  • Continuous Operating Voltage: 5V
  • Max Working Voltage: 10V
  • Nominal Discharging Current: 5KA
  • Max Discharging Voltage: 10KA (10 kilo-amps or 10,000 amps)
  • Limit Voltage: 15V
  • Data Transmission Rate: 10 Mbps
  • Corresponsive Time: 1ns (A nanosecond (ns) is one billionth of a second)
  • Dimensions (mm): 52mm * 28mm * 38mm
  • Dimensions (inches): 2.05"(w) * 1.1"(h) * 1.5"(d)
  • Operating Conditions: -25°C to 65°C [-13°F to 149°F] < 96% Humidity
  • Test Standard: IEC61643-21: 2000
  • Weight: 0.5 lb.
  • Lifetime Product Guarantee

Additional Images:

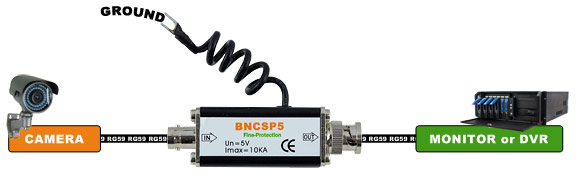

video surge protection diagram
