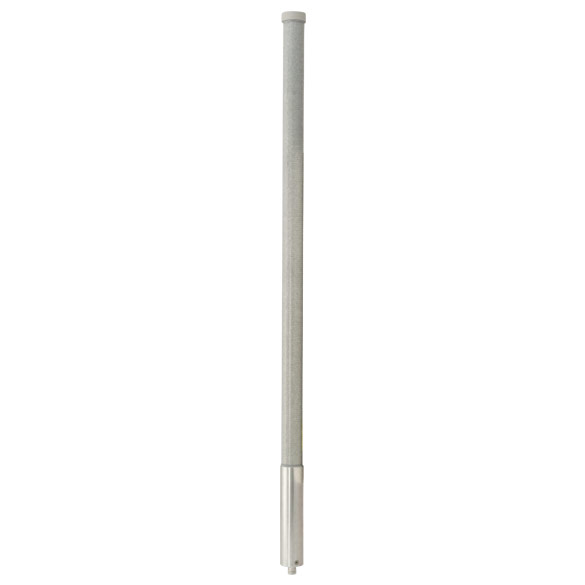

DAP24-OMNI - 2.4 GHz Professional 15dBi Omnidirectional Antenna

Your Price: $189.00
In Stock

Model Number: DAP24-OMNI
omnidirectional antenna
omnidirectional antenna


  • 2.4 GHz ISM Band
  • Supports IEEE 802.11b/g/n applications
  • WiFi and 2.4 GHz wireless video systems
  • Bluetooth & Public Wireless Hotspot

Product Description:

A collinear omni-directional antenna that utilizes a center fed collinear dipole array that offers superior performance over the traditional bottom fed collinear designs. A center fed collinear has radiating elements that are more uniformly fed with signals of the proper amplitude and phase. In a bottom fed design, the signals that reach the upper elements have undergone significant amplitude and phase degradation. In most cases, the upper elements of an end fed design contribute little to the antennas final composite gain and pattern. In the AP24-OMNI, an internal copper hard-line provides a low loss path to the antenna's central splitting and phasing component. The brass radiating elements of the AP24-OMNI utilize an air dielectric for lowest loss and superior radiating efficiency. The design is factory tuned for superior performance.

AP24OMNI Specifications
Frequency 2400-2500 MHz
Gain 15 dBi
Polarization Vertical
Vertical Beam Width 8 degrees
Impedance 50 Ohm
Max. Input Power 100 Watts
VSWR 1.5:1 or less
Lightning Protection DC Short
Weight 3.3 lbs (1.5 kg)
Length 40.5'' (1.03 m)
Base Diameter 1.69'' (42.9mm)
Radome Diameter 1.52'' (38.6mm)
Radome Material Gray Fiberglass (weatherproof)
Mounting 2'' diameter mast max.
Wind Tolerance Up to 150mph
Operating Temperature -40C to 85C (-40F to 185F)
RoHS Compliant Yes
Connector Integral N-Female

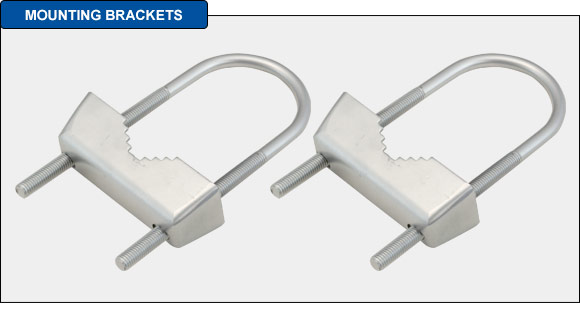

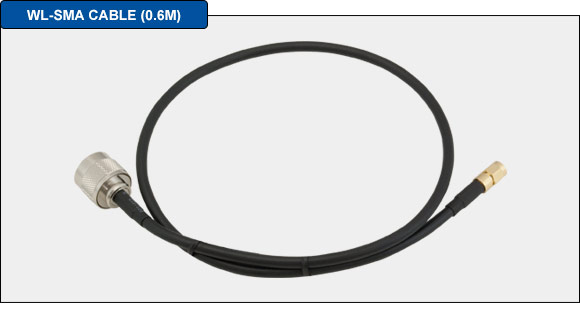

Mounting Brackets WL-SMA Cable (0.6M)
