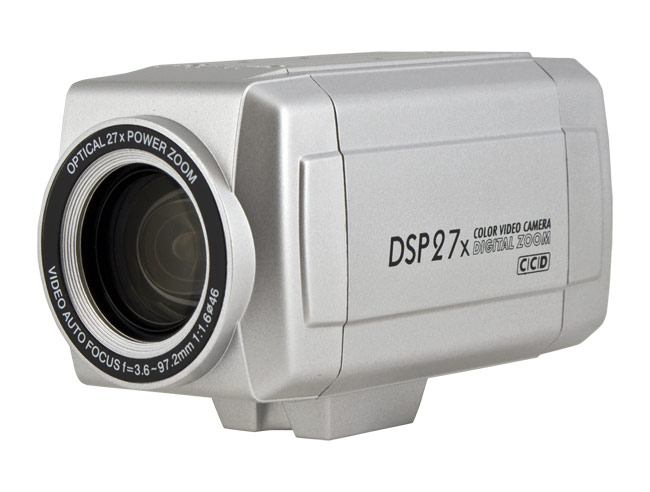

DCM27X - 27X Varifocal Zoom Module Camera

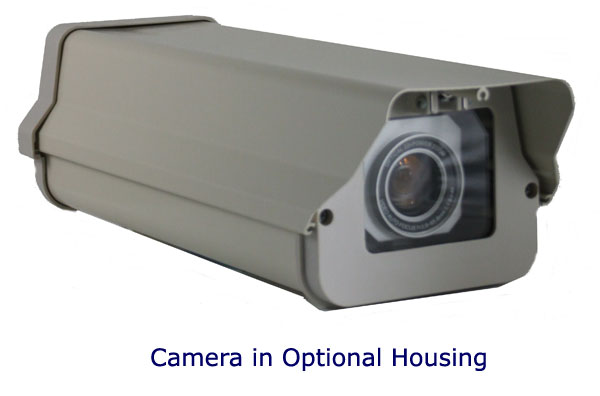

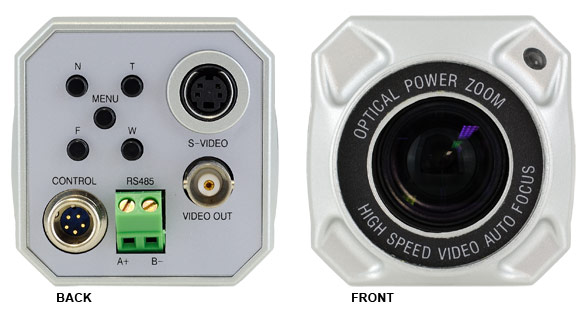

This camera is similar to a c-mount type camera except that the lens is built-in (no need to purchase separately). It comes with a powerful 27X zoom 3.9mm to 105.3mm varifocal lens. The focus and zoom can be controlled via buttons on the back (see additional photos), or via RS-485 Pelco-D protocol. The built-in On Screen Display (OSD) menu lets you adjust the backlight compensation, focus, zoom, and camera id. It can be used indoors, or outdoors in a housing (see options above).

Click to watch Video Overview of DCM27X Camera.

Convert your screw down terminal to 2.1mm male to fit your power supply or plug and play cable with the PWRADT-0.

Features:

• Day / Night
• 27X Optical Zoom
• Built-in 3.9 ~ 105.3mm Varifocal Lens
• On Screen Display
• RS-485 control

Specifications:

• Image Sensor: 1/4" Sony Day/Night CCD
• Resolution: 480 TV lines
• Min Illumination: 0.5 Lux
• Lens: 3.9 ~ 105.3mm Varifocal
• View Angle: 49.6° ~ 2.5°
• Signal to Noise Ratio: > 50dB
• White Balance: Auto
• Gain Control: Auto
• Back Light Compensation: On/Off Switchable
• Electronic Shutter: 1/60s to 1/100,000s
• Protocol: Pelco-D
• Connection Type: BNC
• Operation Temp: 14°F - 122°F (-10°C - 50°C)
• Dimensions (W*H*L): 2.4in x 2.4in x 4in / 60mm x 60mm x 103mm
• Weight: 0.74 lbs (335g)
• Power Supply: 12V DC (not included)
• Power Consumption: 3.6W

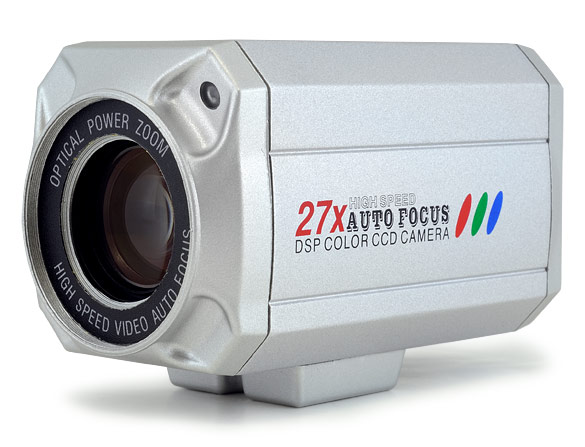

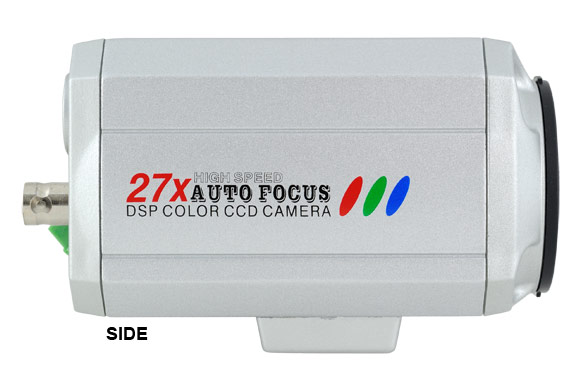

Additional Images:
