DHDD3MA-28 - 2 Megapixel Armor Dome Network Camera
In Stock
Model Number: DHDD3MA-28
Product Options
* denotes required field
Add power supply *
|
|
To use a PTZ camera on our PC-Based DVRs, you must have an RS485 Converter.
Due to amperage required, you should not install with plug and play cable, use RG59 instead.
When installing the DHDD2MA with the pole or corner mount, a small modification will be necessary.
Overview

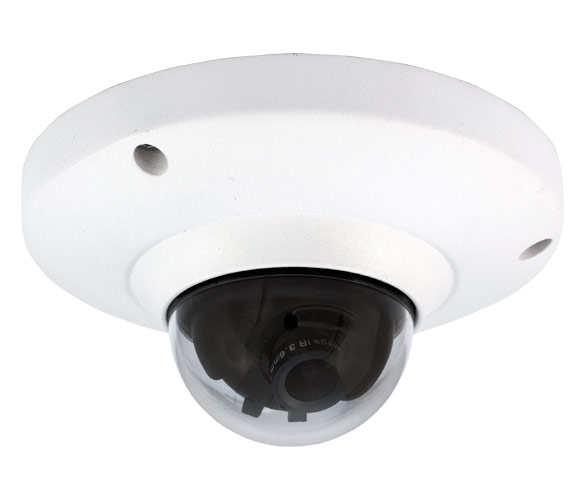

Use the 3 Megapixel DHDD3MA-28 network armor dome camera for indoor locations that need detailed, realtime high resolution video. The DHDD3MA-28 pancake style IP camera is ideal for Government & Law Enforcement security systems.
Features
- 1/3" 3.0 Megapixel progressive scan
- Exmor CMOS image sensor
- H.264 video compression and MJPEG image capture
- Max 20fps@3M(2048×1536), 25/30fps@1080P
- Dual encoding streams supported
- 2.8mm Fixed Lens
- Max 64GB Micro SD card for local storage
- Support DC12V power supply, PoE
- IK10-rated Vandal-proof & IP66 Water-proof
- Built-in Web server, NVR, CMS(PSS/DSS) & DMSS
Specifications
Image Sensor |
1/3" 3 MegaPixel Sony Exmore CMOS |
Effective Pixels (HxV) |
2048 × 1536 |
Scanning System |
Progressive |
Electronic Shutter |
Auto / Manual, 1/4~1/10000s |
Min. Illumination |
Color: 0.1 Lux @ F1.8 |
S/N Ratio |
>50db |
White Balance & Gain Control |
Auto / Manual |
Day / Night |
Auto (Electronic) / Color / B&W |
Backlight Compensation |
BLC / HLC / DWDR |
Noise Reduction |
3D |
Privacy Masking |
Up to 4 areas |
Focal Length |
2.8mm fixed lens |
Max Aperture |
F2.0 |
Angle of View |
H: 72.5° |
Mount Type |
Board-In Type |
Resolution |
3 MP (2048 × 1536) / 1080P (1920 × 1080) / 720P (1280 × 720) / D1 (704 × 480) / CIF (352 × 240) |
Frame Rate |
Main Stream: 3 MP (1 ~ 20 fps), 1080P/720P (1 ~ 30 fps) / Sub Stream: D1/CIF (1 ~ 30 fps) |
Compression (Video) |
H.264 (32K ~ 8192 Kbps) |
Compression (Audio) |
G.711a, G.711u, PCM (Built-in Mic) |
Bit Rate (Video / Audio) |
D1/CIF (1 ~ 30 fps) |
Ethernet |
1 x RJ45 (10/100Base-T) |
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
ONVIF |
ONVIF Ver 2.0 |
Max User Access |
20 users |
Smart Phone |
iPhone, iPad, Android, Windows Phone |
Memory Slot |
Micro SD (Max 64GB) |
Power Supply |
DC 12V, PoE (802.3af) |
Power Consumption |
< 2.5W |
Waterproof Rating |
IK10 & IP66 |
Working Environment |
14° ~ 140° F (-10° ~ 60° C), 10% ~ 90% RH |
Dimensions (D×H) |
4.3" × 2.13" (110 × 54mm) |
Weight |
0.55 lb (0.25 kg) |
Warranty |
1 Year |
|
