DNVR32P16-8 - 32 Camera / 16 PoE 4K Embedded NVR

Your Price: $1,379.00
In Stock

Model Number: DNVR32P16-8

Product Options

* denotes required field

Select Hard Drive Capacity*
Add a monitor*
Add DVR lockbox
32 Channel 16 PoE Plug-and-Play NVR

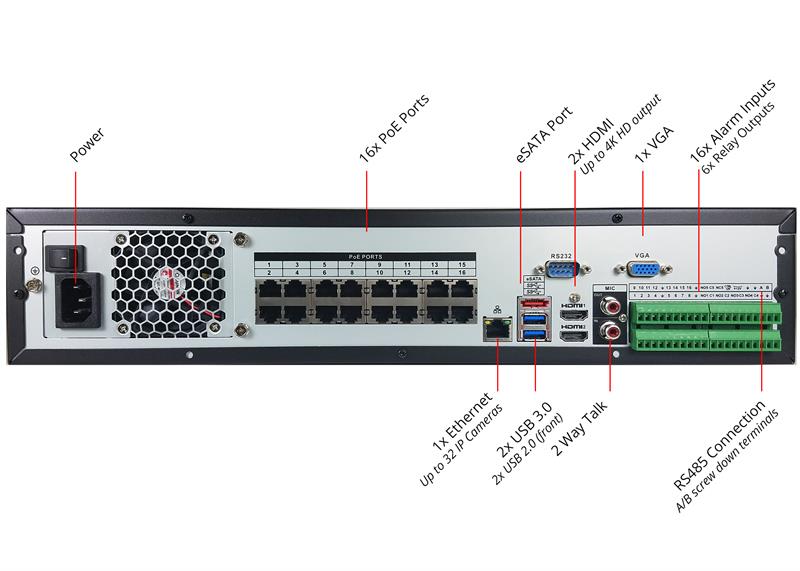

32 Channel 16 PoE Plug-and-Play NVRBack Panel of 2U 32 Channel 16 PoE Plug-and-Play NVR

Overview:

The 32 channel DNVR32P16-8 NVR comes standard with 16 embedded PoE ports. The DNVR32P16-8 will display live feeds at up to 4K resolution and can record at up to 4K / 8MP (2560x1920) resolution depending on the camera. There is ample storage room to record with a storage capacity of up to 64TB. This NVR can be paired with up to 32 high resolution IP cameras using CAT5/6 cables.

Features

  • Up to 32 Channel IP Camera Input
  • H.265 / H.264 / MJPEG / MPEG4 codec decoding
  • Max 320Mbps incoming bandwidth
  • Up to 32ch @ 1080P Realtime live-view
  • Up to 4K / 12MP Resolution Live-view & Playback
  • 2 x HDMI / 1 x VGA Simultaneous Video Output
  • 16 channel synchronous realtime playback, GRID interface
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with PTZ camera
  • Support 8 SATA HDDs up to 64TB, 4 USB (2 USB3.0, 2 USB2.0)
  • Supports RAID 0/1/5/6/10
  • Support IPC UPnP, 16PoE ports
  • Support P2P, QR code scan & add
  • Multiple network monitoring: Web viewer, Optiview VMS & Smart Phones (Optiview Mobile Lite)
Access from anywhere with mobile apps

Specifications

Operating System Embedded LINUX
Main Processor Quad core embedded processor
Video Input / Output 32 Channels / 2 × HDMI (1 HDMI up to 3840 x 2160), 1 × VGA
Display Split 1 / 4 / 8 / 9 / 16 / 26 / 36
Display Resolution 4K (3840×2160), 1080P (1920×1080), 1280×1024, 1280×720, 1024×768
Privacy Masking 4 Rectangular Zones (each camera)
Two-way Talk 1 × Channel, RCA / 1 × Channel, RCA
OSD Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Video Compression H.265 / H.264 / MJPEG / MPEG4
Record Rate 320Mbps
Bit Rate 16kbps ~ 20Mbps per channel
Recording Resolution 12MP, 8MP, 6MP, 5MP, 3MP, 1080P, 1.3MP, 720P
Recording Mode Manual, Schedule [(Regular (Continuous), MD], Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen Tips
Motion Detection Motion Detection, MD Zones: 396 (22 × 18)
Video Loss &
Camera Blank
Supported
Alarm Input / Relay Output 16 Channels / 6 Channels
Playback Channels 1 / 4 / 9 / 16
Search Mode Time / Date, MD & Exact Search (Accurate To Second)
Playback Functions Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device, eSATA Device, Network
Ethernet 1 x RJ-45 port (10/100/1000 Mbps)
PoE 16 ports (IEEE802.3at)
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search
Max. User Access 64 User Accounts ; 128 Web Access Users
Mobile Support iPhone, iPad, Android & Windows Phone
Internal Storage 8 x SATA ports (Up to 64 TB supported)
USB 4 × USB : 2 x 2.0 ports Front / 2 x 3.0 ports Rear
RS232 1 Port for PC communication & keyboard
RS485 1 Port for PTZ control
Power Supply AC 100V~240V,50/60HZ
Power Consumption NVR: 17.5W (without HDD)
PoE: Max 25.5W (for one port), 150W total
Working Environment 14°~131° F (-10°~55° C), 10~90% RH, 86~106 kpa
Dimensions (W×D×H) 2U, 17.3” × 17.9” × 3.8” (440 × 454 × 95 mm)
Weight 15.5 lbs (7kgs) (without HDD)
Warranty 1 Year
